MULTI

MULTI

Heating and Cooling Solutions, THE EXCLUSIVE INVERTER QUATTRO(TM) TECHNOLOGY

Features

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

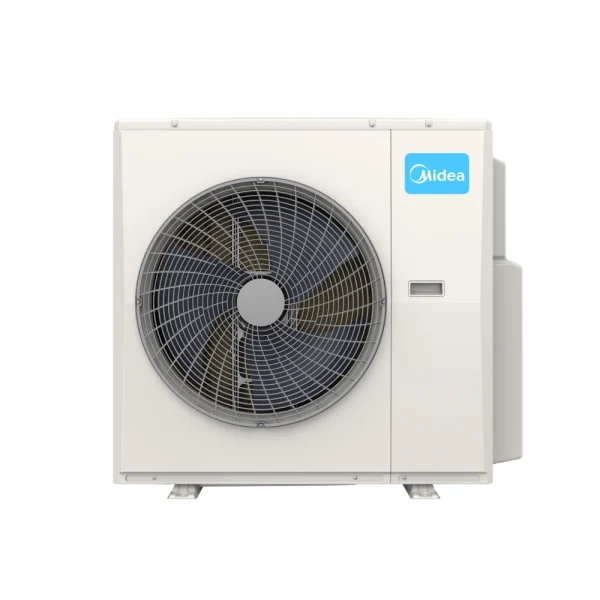

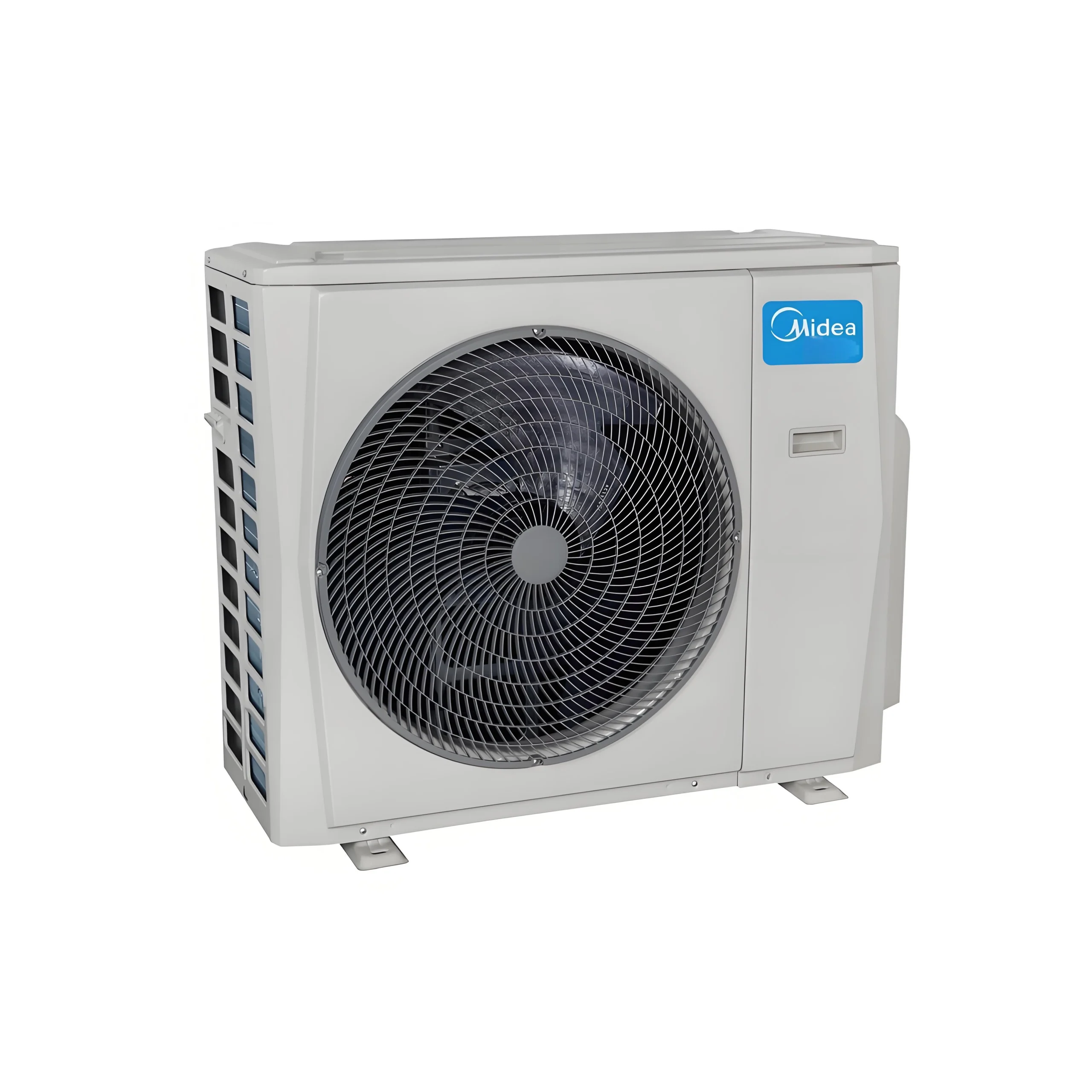

SELECTED MODEL:Model: MULMI0250B

Specification

Connects up to 2 indoor units

Net/Gross Weight: 34.6/51.6 kg

Product Dimension(WxDxH): 554×805×330mm

Package Dimension(WxDxH): 1030x438x750mm

size

Indoor: /

Outdoor:/

Capacity & Energy Rating

Cooling Capacity 5.2kw

Heating Capacity 5.5kw

Cooling STAR(seasonal)

Heating STAR(seasonal)

— — — — Specifications — — — —

SELECTED MODEL:Model: MULMI0371B

Specification

Connects up to 3 indoor units

Net/Gross Weight: 48.1/51.6 kg

Product Dimension(WxDxH): 890x342x673mm

Package Dimension(WxDxH): 1030x438x750mm

size

Indoor: /

Outdoor:/

Capacity & Energy Rating

Cooling Capacity 7.1kw

Heating Capacity 7.5kw

Cooling STAR(seasonal) 4.5/3.5/3.5

Heating STAR(seasonal) 3/3/2.5

— — — — Specifications — — — —

SELECTED MODEL:Model: MULMI0480B

Specification

Connects up to 4 indoor units

Net/Gross Weight: 66.2/71.6

Product Dimension(WxDxH): 946x410x810mm

Package Dimension(WxDxH): 1090x500x875mm

size

Indoor: /

Outdoor:/

Capacity & Energy Rating

Cooling Capacity 8.0kw

Heating Capacity 8.5kw

Cooling STAR(seasonal) 5.0/4.0/4.0

Heating STAR(seasonal) 3.5/3.0/2.0

— — — — Specifications — — — —

SELECTED MODEL:Model: MULMI0511B

Specification

Connects up to 5 indoor units

Net/Gross Weight: 75.9/81.6kg

Product Dimension(WxDxH): 946x410x810mm

Package Dimension(WxDxH): 1090x500x875mm

size

Indoor: /

Outdoor:/

Capacity & Energy Rating

Cooling Capacity 10.5kw

Heating Capacity 11.0kw

Cooling STAR(seasonal) 3.5/3.0/3.0

Heating STAR(seasonal) 3.0/2.0/2.0

— — — — Specifications — — — —

SELECTED MODEL:Model: MULMI0513B

Specification

Connects up to 5 indoor units

Net/Gross Weight: 91/106.4

Product Dimension(WxDxH): 970x985x415mm

Package Dimension(WxDxH): 1080x1145x500mm

size

Indoor: /

Outdoor:/

Capacity & Energy Rating

Cooling Capacity 13.5kw

Heating Capacity 14.0kw

Cooling STAR(seasonal) 4/3.5/4

Heating STAR(seasonal) 4/3/2.5

— — — — Specifications — — — —

SELECTED MODEL:Model: MULMI0618B

Specification

Connects up to 6 indoor units

Net/Gross Weight: 110.6/124.9

Product Dimension(WxDxH): 952x415x1333mm

Package Dimension(WxDxH): 1095x495x1480mm

size

Indoor: /

Outdoor:/

Capacity & Energy Rating

Cooling Capacity 18.0kw

Heating Capacity 20.5kw

Cooling STAR(seasonal) 4/3.5/3.5
Heating STAR(seasonal) 3.5/2.5/2
