Name: V8 Master Series - Midea
Price: 64.00 EUR
Availability: InStock

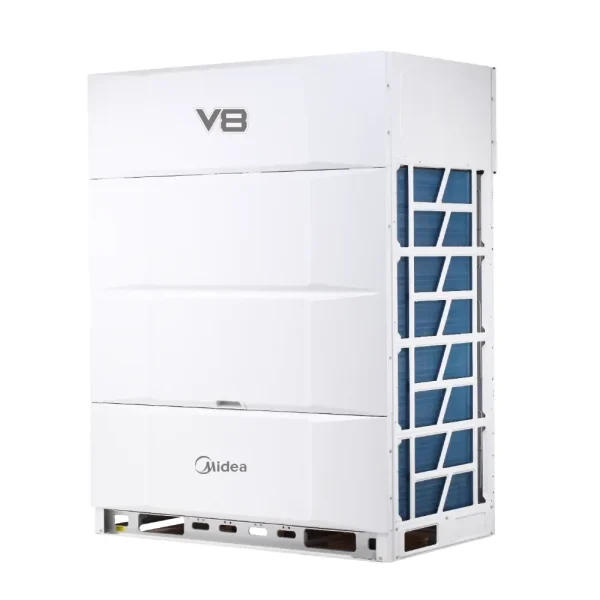

V8 Master Series

Features :

High Efficiently --- MTEA2.0
High Reliability --- Shield Box, Super Sense, M-Holmes.
Enhanced Comfort ---- ZEN air 2.0
Wide Application Range
Easy Installation and Service --- Hyperlink , Doctor m.2.0

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

HP			8	10	12
Model name			MV8-252WV2RN1E(MA)	MV8-280WV2RN1E(MA)	MV8-335WV2RN1E(MA)
Power supply		V/N/Hz	380-415/3/50	380-415/3/50	380-415/3/50
Cooling1	Capacity	kW	25.2	28.0	33.5
Cooling1	Capacity	kBtu/h	85.9	95.5	114.2
Heating2(Rated)	Capacity	kW	25.2	28.0	33.5
Heating2(Rated)	Capacity	kBtu/h	85.9	95.5	114.2
Heating2(Max)	Capacity	kW	27.0	31.5	37.5
Heating2(Max)	Capacity	kBtu/h	92.1	107.4	127.9
SEER			7.21	6.82	6.32
ηs,c		%	285.4	269.8	249.8
SCOP			4.08	4.07	4.09
ηs,h		%	160.2	159.8	160.6
Connected indoor unit	Total capacity		50%-130%	50%-130%	50%-130%
Connected indoor unit	Maximum quantity		13	16	19
Refrigerant	Type		R410A	R410A	R410A
Refrigerant	Factory charge	kg	7	7	7
Pipe connections3	Liquid pipe	mm	Ø12.7	Ø12.7	Ø12.7
Pipe connections3	Gas pipe	mm	Ø25.4	Ø25.4	Ø25.4
Sound pressure level4		dB(A)	58	58	61
Sound power level4		dB(A)	83	84	85
Net dimensions (W×H×D)		mm	940×1760×825
Packed dimensions (W×H×D)		mm	1005×1945×890
Net weight		kg	195	195	195
Gross weight		kg	213	213	213
Ambient temp. operation range	Cooling	°C	-15 to 55	-15 to 55	-15 to 55
Ambient temp. operation range	Heating	°C	-30 to 30	-30 to 30	-30 to 30

— — — — Specifications — — — —

HP			14	16	18
Model name			MV8-400WV2RN1E(MA)	MV8-450WV2RN1E(MA)	MV8-500WV2RN1E(MA)
Power supply		V/N/Hz	380-415/3/50	380-415/3/50	380-415/3/50
Cooling1	Capacity	kW	40.0	45.0	50.0
Cooling1	Capacity	kBtu/h	136.4	153.5	170.5
Heating2(Rated)	Capacity	kW	40.0	45.0	50.0
Heating2(Rated)	Capacity	kBtu/h	136.4	153.5	170.5
Heating2(Max)	Capacity	kW	45.0	50.0	56.0
Heating2(Max)	Capacity	kBtu/h	153.5	170.5	191.0
SEER			6.25	6.02	6.11
ηs,c		%	247.0	237.8	241.4
SCOP			4.12	4.02	4.14
ηs,h		%	161.8	157.8	162.6
Connected indoor unit	Total capacity		50%-130%	50%-130%	50%-130%
Connected indoor unit	Maximum quantity		23	26	29
Refrigerant	Type		R410A	R410A	R410A
Refrigerant	Factory charge	kg	8.4	8.4	9.3
Pipe connections3	Liquid pipe	mm	Ø15.9	Ø15.9	Ø15.9
Pipe connections3	Gas pipe	mm	Ø28.6	Ø28.6	Ø28.6
Sound pressure level4		dB(A)	63	65	65
Sound power level4		dB(A)	86	86	88
Net dimensions (W×H×D)		mm	940×1760×825		1340×1760×825
Packed dimensions (W×H×D)		mm	1005×1945×890		1405×1945×890
Net weight		kg	215	215	295
Gross weight		kg	232	232	315
Ambient temp. operation range	Cooling	°C	-15 to 55	-15 to 55	-15 to 55
Ambient temp. operation range	Heating	°C	-30 to 30	-30 to 30	-30 to 30

— — — — Specifications — — — —

HP			20	22	24
Model name			MV8-560WV2RN1E(MA)	MV8-615WV2RN1E(MA)	MV8-670WV2RN1E(MA)
Power supply		V/N/Hz	380-415/3/50	380-415/3/50	380-415/3/50
Cooling1	Capacity	kW	56.0	61.5	67.0
Cooling1	Capacity	kBtu/h	191.0	209.7	228.5
Heating2(Rated)	Capacity	kW	56.0	61.5	67.0
Heating2(Rated)	Capacity	kBtu/h	191.0	209.7	228.5
Heating2(Max)	Capacity	kW	63.0	69.0	75.0
Heating2(Max)	Capacity	kBtu/h	214.8	235.3	255.8
SEER			6.00	5.93	5.98
ηs,c		%	237.0	234.2	236.2
SCOP			4.03	4.21	4.08
ηs,h		%	158.2	165.4	160.2
Connected indoor unit	Total capacity		50%-130%	50%-130%	50%-130%
Connected indoor unit	Maximum quantity		33	36	39
Refrigerant	Type		R410A	R410A	R410A
Refrigerant	Factory charge	kg	9.3	11.96	11.96
Pipe connections3	Liquid pipe	mm	Ø15.9	Ø15.9	Ø15.9
Pipe connections3	Gas pipe	mm	Ø28.6	Ø28.6	Ø28.6
Sound pressure level4		dB(A)	66	66	67
Sound power level4		dB(A)	89	89	92
Net dimensions (W×H×D)		mm	1340×1760×825
Packed dimensions (W×H×D)		mm	1405×1945×890
Net weight		kg	295	315	315
Gross weight		kg	315	335	335
Ambient temp. operation range	Cooling	°C	-15 to 55	-15 to 55	-15 to 55
Ambient temp. operation range	Heating	°C	-30 to 30	-30 to 30	-30 to 30

— — — — Specifications — — — —

HP			26	28	30	32
Model name			MV8-730WV2RN1E(MA)	MV8-785WV2RN1E(MA)	MV8-850WV2RN1E(MA)	MV8-900WV2RN1E(MA)
Power supply		V/N/Hz	380-415/3/50	380-415/3/50	380-415/3/50	380-415/3/50
Cooling1	Capacity	kW	73.0	78.5	85.0	90.0
Cooling1	Capacity	kBtu/h	248.9	267.7	289.9	306.9
Heating2(Rated)	Capacity	kW	73.0	78.5	85.0	90.0
Heating2(Rated)	Capacity	kBtu/h	248.9	267.7	289.9	306.9
Heating2(Max)	Capacity	kW	81.5	87.5	95.0	100.0
Heating2(Max)	Capacity	kBtu/h	277.9	298.4	324.0	341.0
SEER			5.77	5.93	5.81	5.75
ηs,c		%	227.8	234.2	229.4	227.0
SCOP			4.15	4.12	4.00	3.95
ηs,h		%	163.0	161.8	157.0	155.0
Connected indoor unit	Total capacity		50%-130%	50%-130%	50%-130%	50%-130%
Connected indoor unit	Maximum quantity		43	46	50	53
Refrigerant	Type		R410A	R410A	R410A	R410A
Refrigerant	Factory charge	kg	11.96	11.96	11.96	11.96
Pipe connections3	Liquid pipe	mm	Ø22.2	Ø22.2	Ø22.2	Ø22.2
Pipe connections3	Gas pipe	mm	Ø31.8	Ø34.9	Ø34.9	Ø34.9
Sound pressure level4		dB(A)	68	68	68	68
Sound power level4		dB(A)	93	93	93	93
Net dimensions (W×H×D)		mm	1880×1760×825
Packed dimensions (W×H×D)		mm	1945×1945×890
Net weight		kg	366	396	396	396
Gross weight		kg	396	426	426	426
Ambient temp. operation range	Cooling	°C	-15 to 55	-15 to 55	-15 to 55	-15 to 55
Ambient temp. operation range	Heating	°C	-30 to 30	-30 to 30	-30 to 30	-30 to 30

Midea_VRF_V8 Master EU Brochure

Midea_VRF_V8 Master EU Eng. Data
