Name: V8 Ceiling & Floor - Midea
Price: 64.00 EUR
Availability: InStock

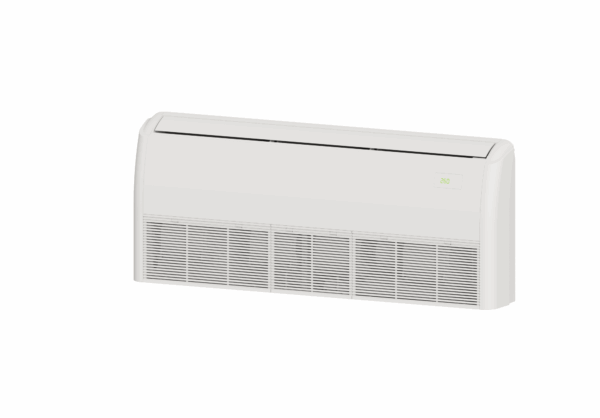

V8 Ceiling & Floor

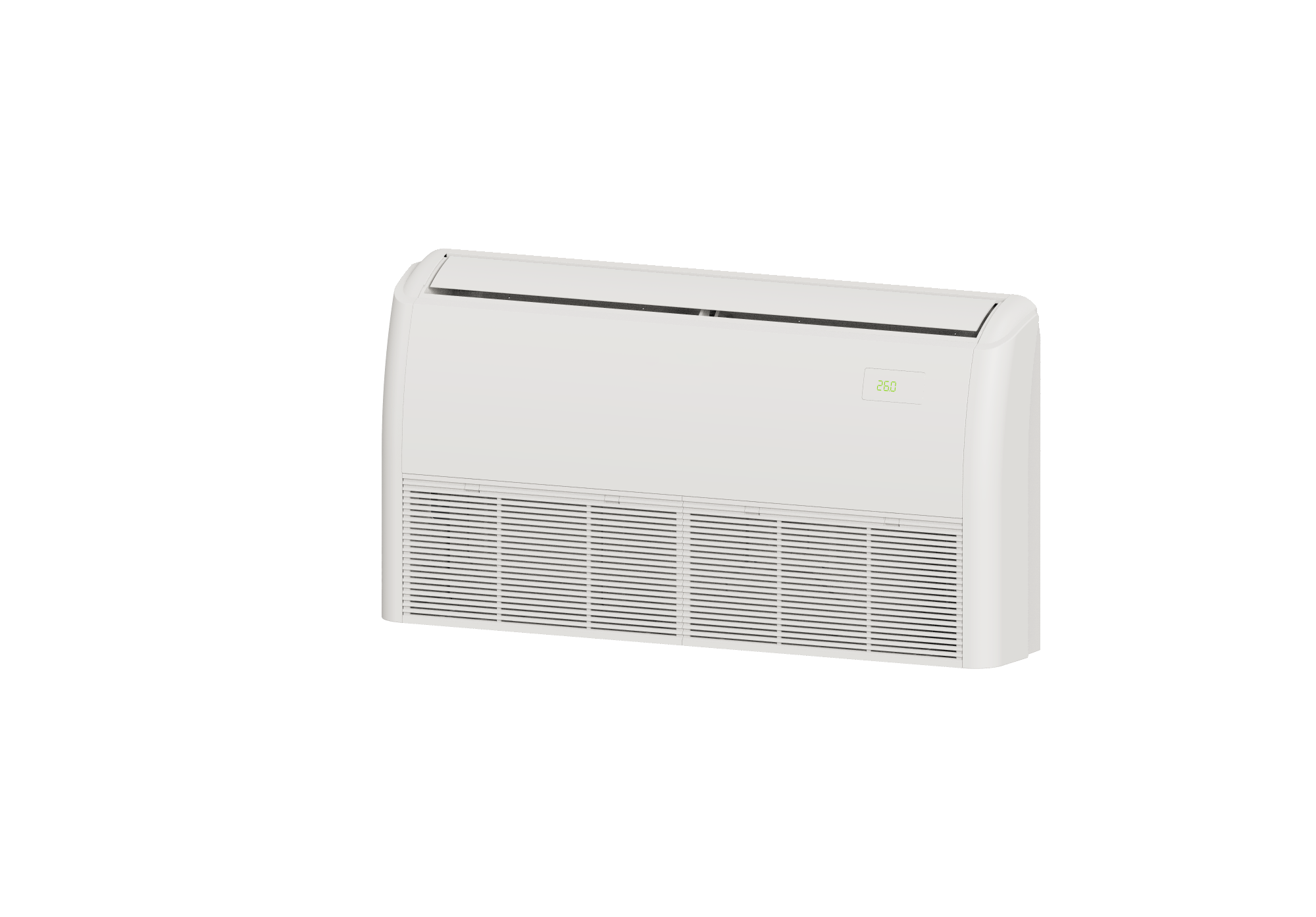

kmdel 5e467a2ded0241d390023e2fbe1b1264 V8 Ceiling Floor 7.1 9.0kW

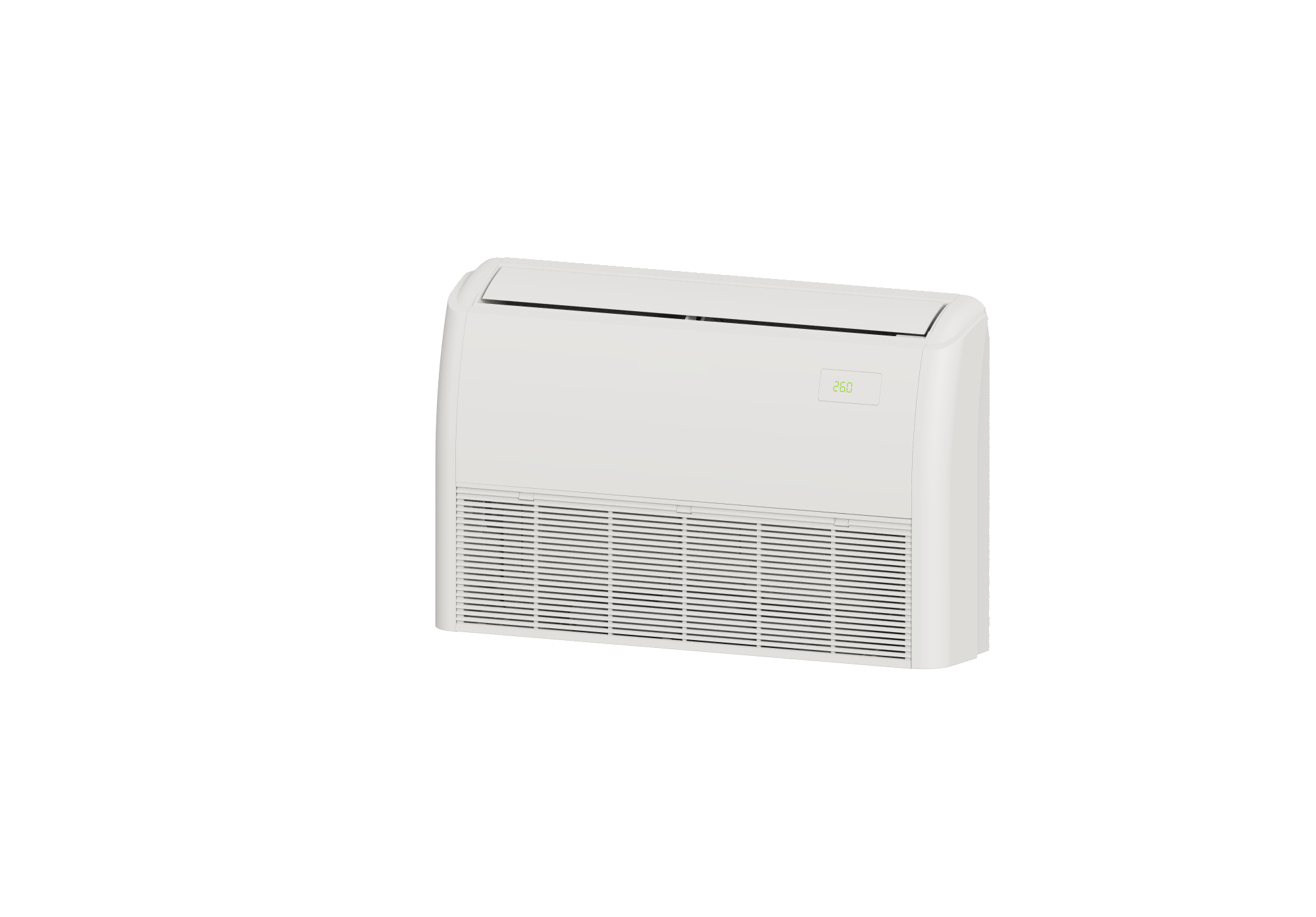

kmdel 3bde676eb9c84620a9161296b4971609 V8 Ceiling Floor 3.6 5.6kW

VRF SYSTEMS

2 Installation options
Quite Operation
Auto cooling & heating changeover
High lift drain pump with digital feedback
5-steps louver control
Human detect sensor option
Follow me available

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

SELECTED MODEL: MIH36DLHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimension(H×W×D)：674×1069×234mm

Packing dimension(H×W×D): 755×1190×313mm

Net/Gross weight: 24.7/29.5kg

Cooling

Capacity：3.6kw

Power input: 16w

Heating

Capacity：4kw

Power input: 16w

Sound pressure level(dB(A))

Pipe connections

32/30/29/28/27/26/25

Liquid: Ø6.35

Gas：Ø12.7

— — — — Specifications — — — —

SELECTED MODEL: MIH45DLHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimension(H×W×D)：674×1069×234mm

Packing dimension(H×W×D): 755×1190×313mm

Net/Gross weight: 24.7/29.5kg

Cooling

Capacity：4.5kw

Power input: 24w

Heating

Capacity：5kw

Power input: 24w

Sound pressure level(dB(A))

Pipe connections

36 /35 /34 /33 /32/ 31 /30

Liquid: Ø6.35

Gas：Ø12.7

— — — — Specifications — — — —

SELECTED MODEL: MIH56DLNHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimension(H×W×D)：674×1069×234mm

Packing dimension(H×W×D): 755×1190×313mm

Net/Gross weight: 24.7/29.5kg

Cooling

Capacity：5.6kw

Power input: 40w

Heating

Capacity：6.3kw

Power input: 40w

Sound pressure level(dB(A))

Pipe connections

43 /41 /40 /38 /36 /34 /33

Liquid: Ø6.35

Gas：Ø12.7

— — — — Specifications — — — —

SELECTED MODEL: MIH71DLHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：674×1284×234mm

Packed dimensions (H×W×D): 755×1405×323mm

Net/Gross weight: 29.8/34.8kg

Cooling

Capacity：7.1kw

Power input: 42w

Heating

Capacity：8kw

Power input: 42w

Sound pressure level(dB(A))

Pipe connections

43 / 40/ 39/ 37/ 35/ 34/ 33

Liquid: Ø9.52

Gas：Ø15.9

— — — — Specifications — — — —

SELECTED MODEL: MIH80DLHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：674×1284×234mm

Packed dimensions (H×W×D): 755×1405×323mm

Net/Gross weight: 29.8/34.8kg

Cooling

Capacity：8kw

Power input: 56w

Heating

Capacity：9kw

Power input: 56w

Sound pressure level(dB(A))

Pipe connections

45 /44 /42 /40 /38 /36 /34

Liquid: Ø9.52

Gas：Ø15.9

— — — — Specifications — — — —

SELECTED MODEL: MIH90DLHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：674×1284×234mm

Packed dimensions (H×W×D): 755×1405×323mm

Net/Gross weight: 29.8/34.8kg

Cooling

Capacity：9kw

Power input: 75w

Heating

Capacity：10kw

Power input: 75w

Sound pressure level(dB(A))

Pipe connections

48 /47 /46 /44 / 42/ 40/ 37

Liquid: Ø9.52

Gas：Ø15.9

— — — — Specifications — — — —

SELECTED MODEL: MIH100DLHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：674×1649×234mm

Packed dimensions (H×W×D): 755×1770×323mm

Net/Gross weight: 36.4/42.7kg

Cooling

Capacity：10kw

Power input: 50w

Heating

Capacity：11.2kw

Power input: 50w

Sound pressure level(dB(A))

Pipe connections

42/ 40/ 39/ 37/ 35/ 33/ 32

Liquid: Ø9.52

Gas：Ø15.9

— — — — Specifications — — — —

SELECTED MODEL: MIH112DLHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：674×1649×234mm

Packed dimensions (H×W×D): 755×1770×323mm

Net/Gross weight: 36.4/42.7kg

Cooling

Capacity：11.2kw

Power input: 65w

Heating

Capacity：12.5kw

Power input: 65w

Sound pressure level(dB(A))

Pipe connections

44/ 42/ 41/ 39/ 37/ 35/ 33

Liquid: Ø9.52

Gas：Ø15.9

— — — — Specifications — — — —

SELECTED MODEL: MIH125DLHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：674×1649×234mm

Packed dimensions (H×W×D): 755×1770×323mm

Net/Gross weight: 36.4/42.7kg

Cooling

Capacity：12.5kw

Power input: 95w

Heating

Capacity：14kw

Power input: 95w

Sound pressure level(dB(A))

Pipe connections

49/ 48/ 46/ 44/ 42/ 40/ 38

Liquid: Ø9.52

Gas：Ø15.9

— — — — Specifications — — — —

SELECTED MODEL: MIH140DLHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：674×1649×234mm

Packed dimensions (H×W×D): 755×1770×323mm

Net/Gross weight: 36.4/42.7kg

Cooling

Capacity：14kw

Power input: 140w

Heating

Capacity：16kw

Power input: 140w

Sound pressure level(dB(A))

Pipe connections

51.5/ 50/ 48/ 46/ 44/ 42/ 40

Liquid: Ø9.52

Gas：Ø15.9

Midea_VRF_V8 Ceiling & Floor Brochure

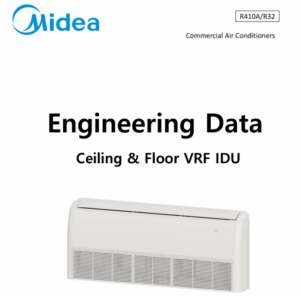

Midea_VRF_V8 Ceiling & Floor Engineering Data Book

Midea_VRF_V8 Wall Mounted Engineering Data Book
