V8M Series

V8M Series

Features

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

SELECTED MODEL: MV8M-80WV2N8   POWER: 220~240/1/60(V/N/Hz)

-

Net dimensions (H×W×D): 1040×865×410mm

Packed dimensions (W×H×D):

1120x980x560mm

-

Net Weight:78kg

Gross weight: 85kg

Cooling & Heating (Rated)²

Capacity:7.2/2.4(kw/kBtu/h)

Heating (Max)

Capacity:9.0/3.0(kw/kBtu/h)

— — — — Specifications — — — —

SELECTED MODEL: MV8M-90WV2N8   POWER:220~240/1/60(V/N/Hz)

-

Net dimensions (H×W×D): 1040×865×410mm

Packed dimensions (W×H×D):

1120x980x560mm

-

Net Weight:78kg

Gross weight: 85kg

Cooling & Heating (Rated)²

Capacity: 9.0/30(kw/kBtu/h)

Heating (Max)

Capacity:10.8/36(kw/kBtu/h)

— — — — Specifications — — — —

SELECTED MODEL: MV8M-123WV2N8   POWER: 220~240/1/60(V/N/Hz)

-

Net dimensions (H×W×D): 1040×865×410mm

Packed dimensions (W×H×D):

1120x980x560mm

-

Net Weight:94kg

Gross weight: 102kg

Cooling & Heating (Rated)²

Capacity:12.3/41(kw/kBtu/h)

Heating (Max)

Capacity:14.0/47(kw/kBtu/h)

— — — — Specifications — — — —

SELECTED MODEL: MV8M-140WV2N8   POWER: 220~240/1/60(V/N/Hz)

-

Net dimensions (H×W×D): 1040×865×410mm

Packed dimensions (W×H×D):

1120x980x560mm

-

Net Weight:94kg

Gross weight: 102kg

Cooling & Heating (Rated)²

Capacity:14.0/47(kw/kBtu/h)

Heating (Max)

Capacity:16.0/54(kw/kBtu/h)

— — — — Specifications — — — —

SELECTED MODEL: MV8M-155WV2N8   POWER: 220~240/1/60(V/N/Hz)

-

Net dimensions (H×W×D): 1040×865×410mm

Packed dimensions (W×H×D):

1120x980x560mm

-

Net Weight:94kg

Gross weight: 102kg

Cooling & Heating (Rated)²

Capacity:15.5/52(kw/kBtu/h)

Heating (Max)

Capacity:17.5/59(kw/kBtu/h)

— — — — Specifications — — — —

SELECTED MODEL: MV8M-175WV2N8   POWER:220~240/1/60(V/N/Hz)

-

Net dimensions (H×W×D): 1040×865×410mm

Packed dimensions (W×H×D):

1120x980x560mm

-

Net Weight:94kg

Gross weight: 102kg

Cooling & Heating (Rated)²

Capacity:17.5/59(kw/kBtu/h)

Heating (Max)

Capacity:19.5/66(kw/kBtu/h)

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — THREE PHASE

Three Phase

— — — — Specifications — — — —

SELECTED MODEL: MV8M-120WV2RN8    POWER: 380-415/3/50(V/N/Hz)

-

Net dimensions (H×W×D): 1040×865×410mm

Packed dimensions (W×H×D):

1120x980x560mm

-

Net Weight:110kg

Gross weight: 118kg

Cooling & Heating(Rated)²

Capacity:12.3/41(kw/kBtu/h)

Heating (Max)

Capacity:14.0/47(kw/kBtu/h)

— — — — Specifications — — — —

SELECTED MODEL: MV8M-140WV2RN8   POWER: 380-415/3/50(V/N/Hz)

-

Net dimensions (H×W×D): 1040×865×410mm

Packed dimensions (W×H×D):

1120x980x560mm

-

Net Weight:110kg

Gross weight: 118kg

Cooling & Heating(Rated)²

Capacity:14.0/47(kw/kBtu/h)

Heating (Max)

Capacity:16.0/54(kw/kBtu/h)

— — — — Specifications — — — —

SELECTED MODEL: MV8M-160WV2RN8    POWER: 380-415/3/50(V/N/Hz)

-

Net dimensions (H×W×D): 1040×865×410mm

Packed dimensions (W×H×D):

1120x980x560mm

-

Net Weight:110kg

Gross weight: 118kg

Cooling & Heating(Rated)²

Capacity:15.5/52(kw/kBtu/h)

Heating (Max)

Capacity:17.5/59(kw/kBtu/h)

— — — — Specifications — — — —

SELECTED MODEL: MV8M-180WV2RN8    POWER: 380-415/3/50(V/N/Hz)

-

Net dimensions (H×W×D): 1040×865×410mm

Packed dimensions (W×H×D):

1120x980x560mm

-

Net Weight:110kg

Gross weight: 118kg

Cooling & Heating(Rated)²

Capacity:17.5/59(kw/kBtu/h)

Heating (Max)

Capacity:19.5/66(kw/kBtu/h)

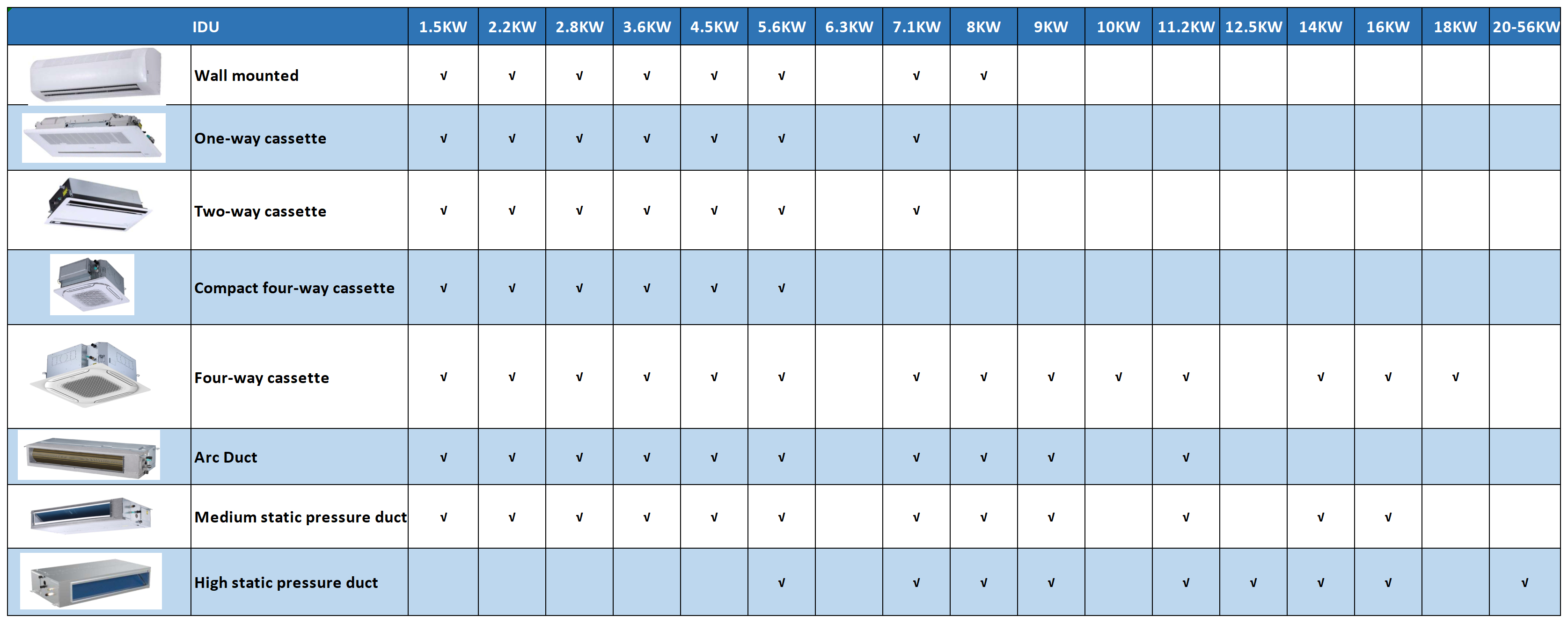

Productlineup20240830 IDU MINI VRF 2024 08 30 14 07 44 209623

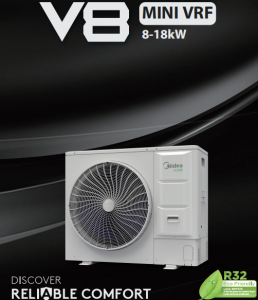

MIDEA R32 V8 Mini VRF Brochure

2024 08 09 135526 2024 08 09 13 56 03 154554

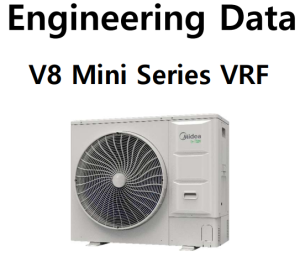

Midea_V8Mini_VRF Engineering Data

2024 08 30 143224 2024 08 30 14 33 03 491710

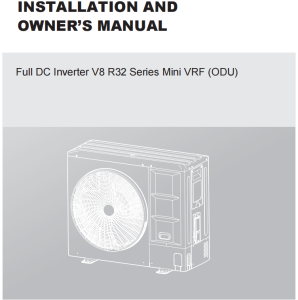

MIDEA R32 V8 Mini VRF INSTALLATION MANUAL
