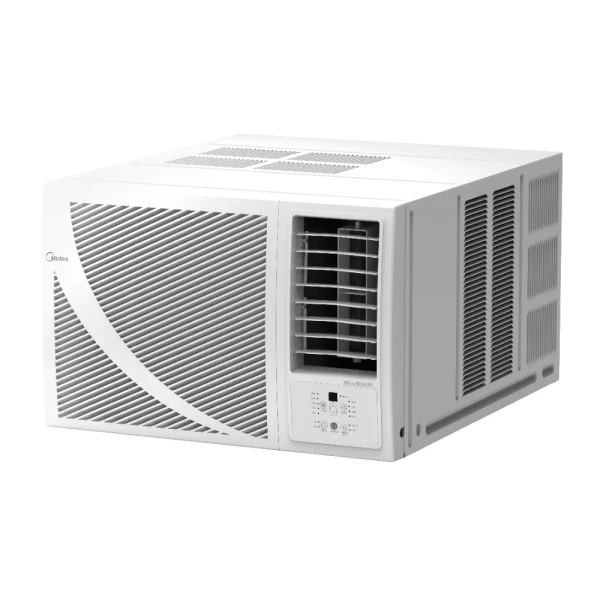

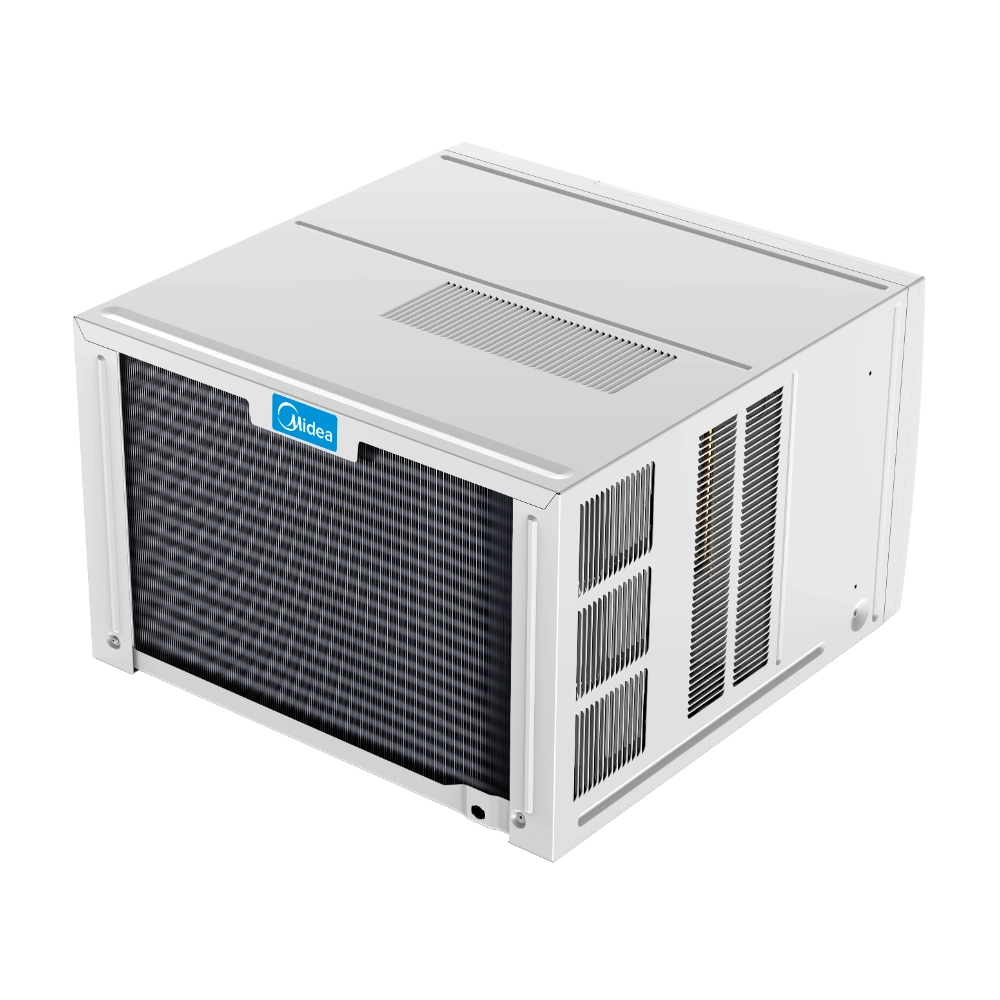

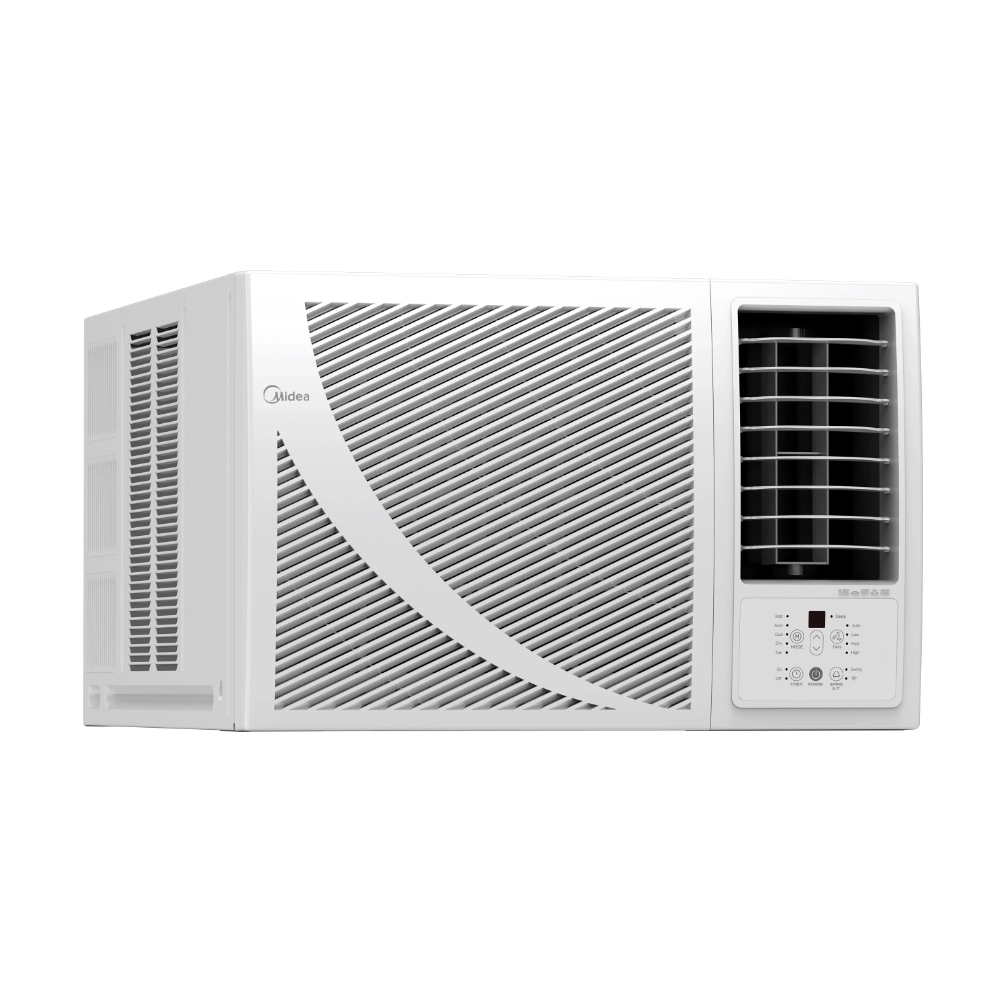

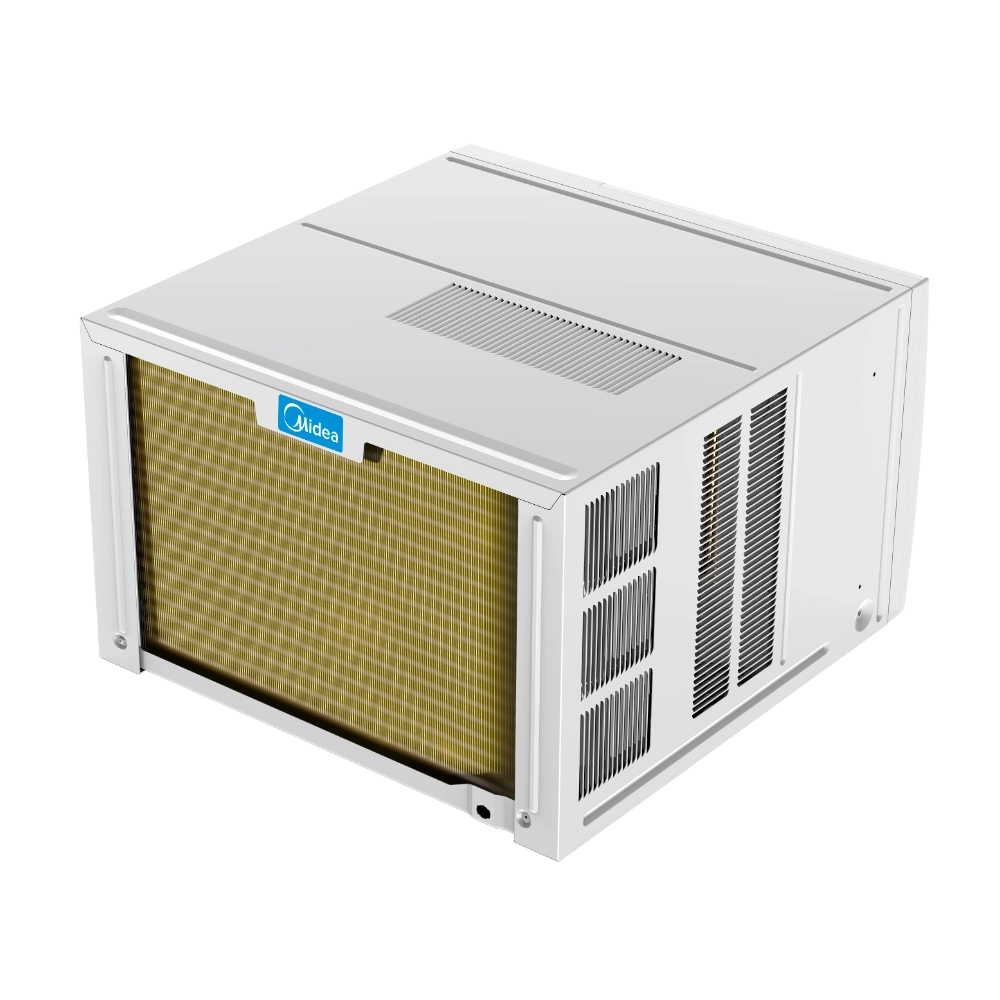

Window Box

Window Box

Heating and Cooling Solutions

Features

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

SELECTED MODEL:MWFF22H

Cooling

Capacity 2.28 kW

Input 680 W

Current 2.99 A

AEER 3.34 W/W

Heating

Capacity 2.0 kW

Input 600 W

Current 2.64 A

ACOP 3.32 W/W

Compressor

Rated Power Input 850 W

Rated current 4 A

Starting current 12 A

Indoor side air flow(Hi/Mi/Lo) 122/109/89 L/s

Indoor side sound power 57.1 dB(A)

Outdoor side sound power 64.3 dB(A)

Refrigerant type R32/0.47 kg

Design pressure 1.2/4.2 Mpa

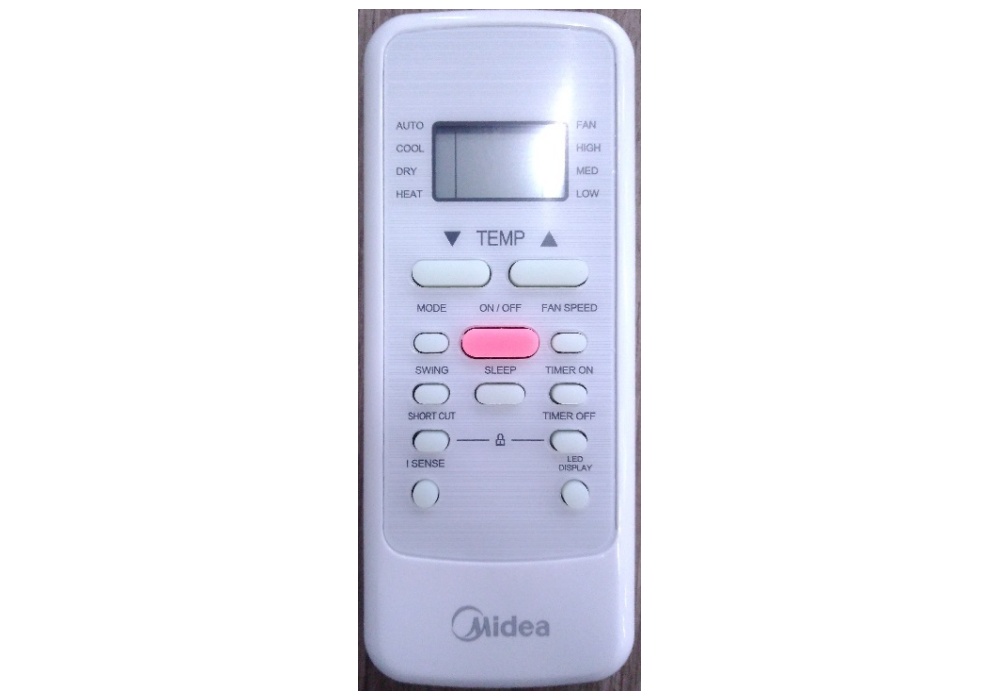

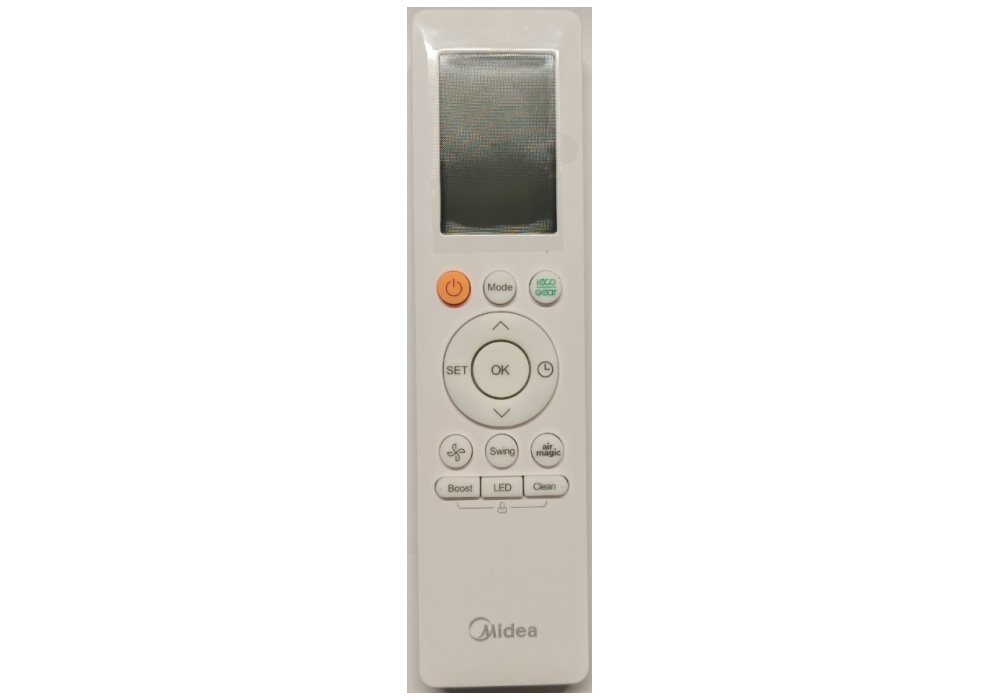

Control type Remote Control

Operation temp:

indoor(cooling/heating) 17-32/0-27 °C

outdoor(cooling/heating) 18-43/-5-24 °C

Application area 10-15 m²

Dimension(W*D*H) 560×695×375 mm

Packing(W*D*H) 625×846×432 mm

Net/Gross Weight 37.4/40.7 kg

— — — — Specifications — — — —

SELECTED MODEL:MWFF28H

Cooling

Capacity 2.8 kW

Input 845 W

Current 3.71 A

AEER 3.3 W/W

Heating

Capacity 2.45 kW

Input 720 W

Current 3.16 A

ACOP 3.39 W/W

Compressor

Rated Power Input 1080 W

Rated current 5.45 A

Starting current 16.35 A

Indoor side air flow(Hi/Mi/Lo) 126/116/104 L/s

Indoor side sound power 56.1 dB(A)

Outdoor side sound power 64.2 dB(A)

Refrigerant type R32/0.54 kg

Design pressure 1.2/4.2 Mpa

Control type Remote Control

Operation temp:

indoor(cooling/heating) 17-32/0-27 °C

outdoor(cooling/heating) 18-43/-5-24 °C

Application area 13-19 m²

Dimension(W*D*H) 560×695×375 mm

Packing(W*D*H) 625×846×432 mm

Net/Gross Weight 40.6/43.9 kg

— — — — Specifications — — — —

SELECTED MODEL:MWFI36H

Cooling

Capacity 3.6 kW

Input 1080 W

Current 4.79 A

AEER 3.31 W/W

Heating

Capacity 3.5 kW

Input 1060 W

Current 4.61 A

ACOP 3.28 W/W

Compressor

Rated Power Input 1470W

Rated current 6.4 A

Starting current

Indoor side air flow(Hi/Mi/Lo) 142/126/110 L/s

Indoor side sound power 58.9 dB(A)

Outdoor side sound power 69.9dB(A)

Refrigerant type R32/0.7 kg

Design pressure 1.2/4.2 Mpa

Control type Remote Control

Operation temp:

indoor(cooling/heating) 16-32/0-30 °C

outdoor(cooling/heating) 18-43/-7-24 °C

Application area 16-23 m²

Dimension(W*D*H) 560×695×375mm

Packing(W*D*H) 625×846×432mm

Net/Gross Weight 38.9/42.1kg

— — — — Specifications — — — —

SELECTED MODEL:MWFF39H

Cooling

Capacity 3.90 kW

Input 1100 W

Current 5.20 A

AEER 3.54 W/W

Heating

Capacity 3.50 kW

Input 1020 W

Current 4.50 A

ACOP 3.43 W/W

Compressor

Rated Power Input 1685 W

Rated current 8.5 A

Starting current 25.5 A

Indoor side air flow(Hi/Mi/Lo) 148/146/144 L/s

Indoor side sound power 57.1 dB(A)

Outdoor side sound power 67.3 dB(A)

Refrigerant type R32/0.83 kg

Design pressure 1.2/4.2 Mpa

Control type Remote Control

Operation temp:

indoor(cooling/heating) 17-32/0-27 °C

outdoor(cooling/heating) 18-43/-5-24 °C

Application area 18-26 m²

Dimension(W*D*H) 660×680×428 mm

Packing(W*D*H) 746×815×515 mm

Net/Gross weight 50.4/54.2 kg

Loading quantity 20’/40’/40’HQ 84/176/218 Pieces

— — — — Specifications — — — —

SELECTED MODEL:MWFF53H

Cooling

Capacity 5.40 kW

Input 1550 W

Current 7.00 A

AEER 3.48 W/W

Heating

Capacity 4.78 kW

Input 1390 W

Current 6.20 A

ACOP 3.43 W/W

Compressor

Rated Power Input 2300 W

Rated current 11.5 A

Starting current 34.5 A

Indoor side air flow(Hi/Mi/Lo) 257/246/238 L/s

Indoor side sound power 65.1 dB(A)

Outdoor side sound power 76.2 dB(A)

Refrigerant type R32/1.0 kg

Design pressure 1.2/4.2 Mpa

Control type Remote Control

Operation temp:

indoor(cooling/heating) 17-32/0-27 °C

outdoor(cooling/heating) 18-43/-5-24 °C

Application area 24-35 m²

Dimension(W*D*H) 660×780×428 mm

Packing(W*D*H) 770×915×510 mm

Net/Gross weight 63.1、67.2 kg

Loading quantity 20’/40’/40’HQ 72/156/195 Pieces

Midea ECOTOUGH Window AC Brochures

2024 08 23 113044 2024 08 23 11 31 06 012198 e1748565891827

MWF09HB4-User-Manual

MWF09HB4-User-Manual
