Name: Atom T Series - Midea
Price: 64.00 EUR
Availability: InStock

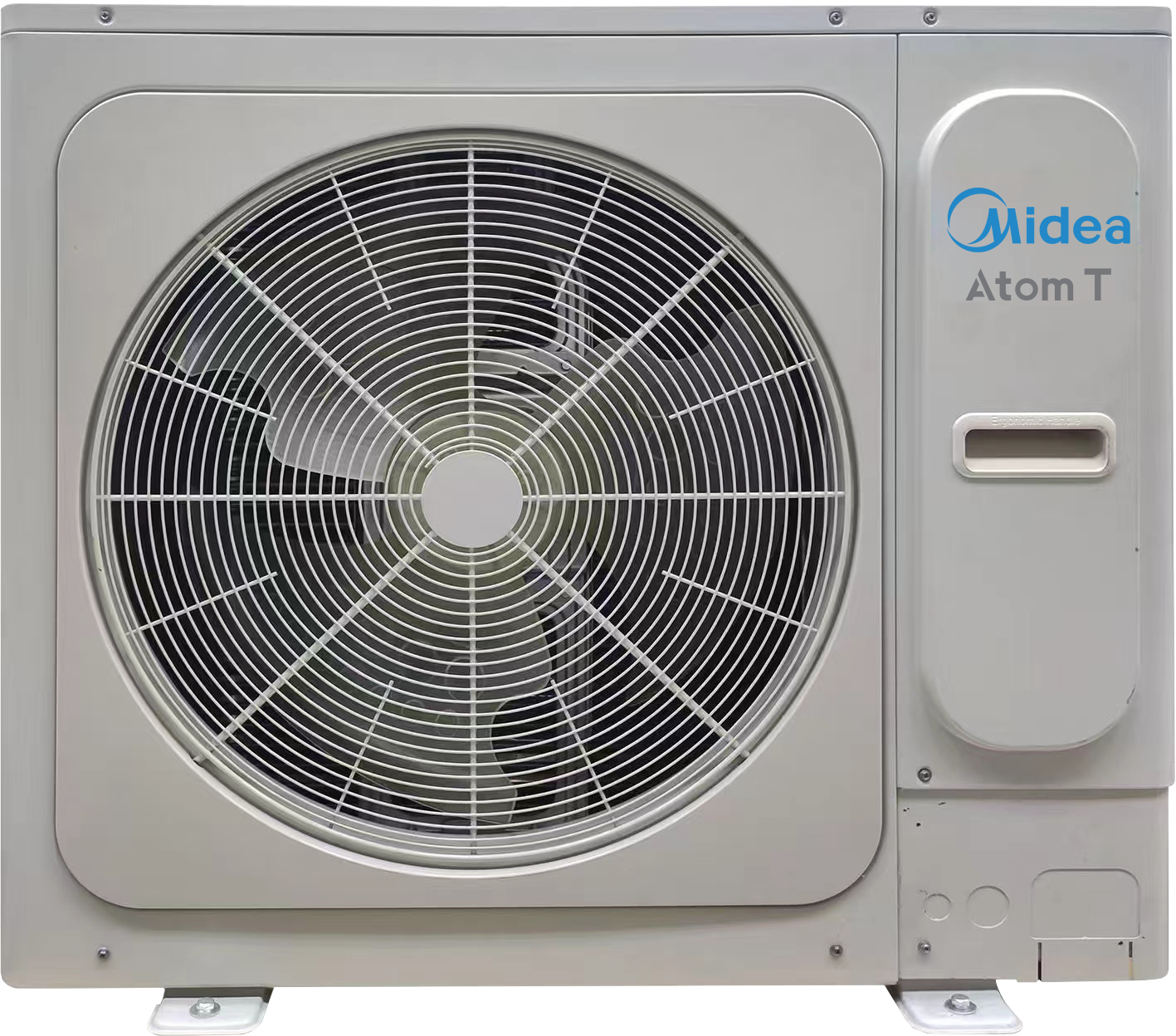

Atom T Series

Heating and Cooling Solutions、R32 VRF SYSTEMS

Features

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

SELECTED MODEL:MDV-V80WHN8(At)

Specification

Power Supply (V/N/Hz): 220-240/1/50

Cooling Capacity (kw): 7.2

Heating Capacity (kw): 7.2

Refrigerant type: R32

size

Outdoor unit：
Dimension(H*W*D):910 x 712 x 426 mm
Packing (H*W*D):1045x810x485mm
Net/Gross weight:49/53kg

Ambient Temp. Operation Range Cooling (°C): -15~46

Refrigerant piping

Liquid side/ Gas side: 9.52mm(3/8in)/15.9mm(5/8in)

Connected Indoor Unit:
Total capacity: 50%~130% (50%-100%3
) of ODU capacity

Maximum quantity: 4

— — — — Specifications — — — —

SELECTED MODEL:MDV-V100WHN8(At)

Specification

Power Supply (V/N/Hz): 220-240/1/50

Cooling Capacity (kw): 9.0

Heating Capacity (kw): 9.0

Refrigerant type: R32

size

Outdoor unit：
Dimension(H*W*D):910x712x426 mm
Packing (H*W*D):1045×810x485 mm
Net/Gross weight:52.5/56.5 kg

Ambient Temp. Operation Range
Cooling (° C): -15~55

Refrigerant piping

Liquid side/ Gas side: 9.52mm(3/8in)/15.9mm(5/8in)

Connected Indoor Unit:
Total capacity: 50%~130% (50%-100%3
) of ODU capacity

Maximum quantity: 6

— — — — Specifications — — — —

SELECTED MODEL:MDV-V120WHN8(At)

Specification

Power Supple (V/N/Hz): 220-240/1/50

Cooling Capacity (kw): 12.3

Heating Capacity (kw): 12.3

Refrigerant type: R32

size

Outdoor unit：
Dimension(H*W*D):950x840×440 mm
Packing (H*W*D):1025x940×510 mm
Net/Gross weight:62.5/73 kg

Ambient Temp. Operation Range Cooling (°C): -15~55

Refrigerant piping

Liquid side/ Gas side: 9.52mm(3/8in)/15.9mm(5/8in)

Connected Indoor Unit:
Total capacity: 50%~130% (50%-100%3
) of ODU capacity

Maximum quantity: 7

— — — — Specifications — — — —

SELECTED MODEL:MDV-V140WHN8(At)

Specification

Power Supply (V/N/Hz): 220-240/1/50

Cooling Capacity (kw): 14

Heating Capacity (kw) 14

Refrigerant type: R32

size

Outdoor unit：
Dimension(H*W*D):980×840x440 mm
Packing (H*W*D):1025x940×510 mm
Net/Gross weight :77.5/88 kg

Ambient Temp. Operation Range Cooling (°C): -15~55

Refrigerant piping

Liquid side/ Gas side: 9.52mm(3/8in)/15.9mm(5/8in)

Connected Indoor Unit:
Total capacity: 50%~130% (50%-100%3
) of ODU capacity

Maximum quantity: 8

— — — — Specifications — — — —

SELECTED MODEL: MDV-V160WHN8(At)

Specification

Power Supply (V/N/Hz): 220-240/1/50

Cooling Capacity (kw): 15.5

Heating Capacity (kw): 15.5

Refrigerant type: R32

size

Outdoor unit：
Dimension(H*W*D):950x840×440 mm
Packing (H*W*D):1025x940×510 mm
Net/Gross weight:77.5/88 kg

Ambient Temp. Operation Range Cooling (°C): -15 ~55

Refrigerant piping

Liquid side/ Gas side: 9.52mm(3/8in)/15.9mm(5/8in)

Connected Indoor Unit:

Total capacity: 50%~130% (50%-100%3
) of ODU capacity

Maximum quantity: 9

Atom T Series Brochure

Midea_AtomT_VRF_R32_Engineering Data Book

Ducted-R32_Installation-Caution

Ducted-R32_Installation_7kw&9kw

Ducted-R32_Installation_10.5&12.5&14kw

Ducted-R32_Installation_17kw

Wired-Controller-Installation-Manual
