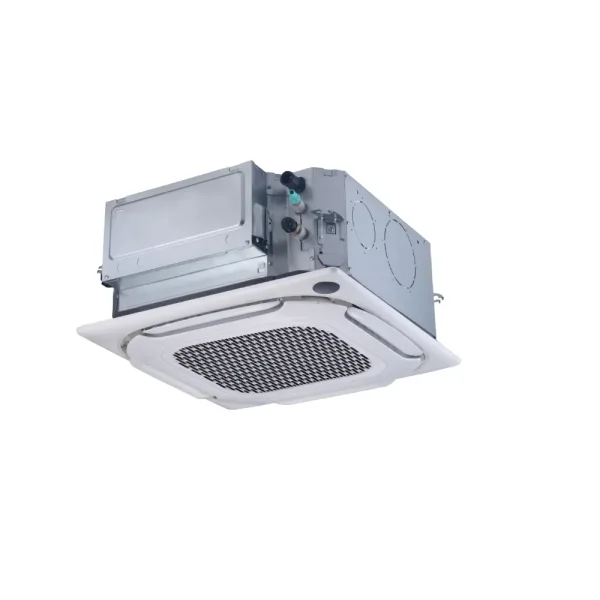

Compact Four-Way Cassette

Compact Four-Way Cassette

VRF SYSTEMS

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

SELECTED MODEL: MIH15Q4CHN18        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D): 235×575×638mm

Packed dimensions (H×W×D):285×690×690mm

Net/Gross weight:13.0/15.0kg

Panel

Net dimensions (H×W×D): 65×620×620mm

Packed dimensions (H×W×D): 80×680×665mm

Net/Gross weight: 2.3/3.0kg

Cooling

Capacity:1.5kw

Power input:14w

Heating

Capacity: 1.8kw

Power input: 14w

Airflow rate(m3/h)

450/ 425/ 400/ 370/ 345/ 320/ 295

Sound pressure level(dB(A))

29/ 28/ 27/ 27/ 26/ 26/ 25

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH22Q4CHN18        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D): 235×575×638mm

Packed dimensions (H×W×D):285×690×690mm

Net/Gross weight:13.0/15.0kg

Panel

Net dimensions (H×W×D): 65×620×620mm

Packed dimensions (H×W×D): 80×680×665mm

Net/Gross weight: 2.3/3.0kg

Cooling

Capacity:2.2kw

Power input:14w

Heating

Capacity: 2.4kw

Power input: 14w

Airflow rate(m3/h)

450/ 425/ 400/ 370/ 345/ 320/ 295

Sound pressure level(dB(A))

29/ 28/ 27/ 27/ 26/ 26/ 25

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH28Q4CHN18        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D): 235×575×638mm

Packed dimensions (H×W×D):285×690×690mm

Net/Gross weight:13.0/15.0kg

Panel

Net dimensions (H×W×D): 65×620×620mm

Packed dimensions (H×W×D): 80×680×665mm

Net/Gross weight: 2.3/3.0kg

Cooling

Capacity:2.8kw

Power input:16w

Heating

Capacity: 3.2kw

Power input: 16w

Airflow rate(m3/h)

510/ 480/ 455/ 425/ 395/ 370/ 340

Sound pressure level(dB(A))

30/ 29/ 28/ 27/ 26/ 26/ 25

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH36Q4CHN18        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D): 235×575×638mm

Packed dimensions (H×W×D):285×690×690mm

Net/Gross weight:14.0/16.0kg

Panel

Net dimensions (H×W×D): 65×620×620mm

Packed dimensions (H×W×D): 80×680×665mm

Net/Gross weight: 2.3/3.0kg

Cooling

Capacity:3.6kw

Power input:18w

Heating

Capacity: 4.0kw

Power input: 18w

Airflow rate(m3/h)

530/ 500/ 470/ 440/ 405/ 375/ 345

Sound pressure level(dB(A))

31/ 30/ 29/ 28/ 27/ 26/ 25.5

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH45Q4CHN18        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D): 235×575×638mm

Packed dimensions (H×W×D):285×690×690mm

Net/Gross weight:14.0/16.0kg

Panel

Net dimensions (H×W×D): 65×620×620mm

Packed dimensions (H×W×D): 80×680×665mm

Net/Gross weight: 2.3/3.0kg

Cooling

Capacity:4.5kw

Power input:25w

Heating

Capacity: 5.0kw

Power input: 25w

Airflow rate(m3/h)

640/ 605/ 570/ 530/ 495/ 460/ 425

Sound pressure level(dB(A))

36.5/ 35/ 33/ 31/ 29/ 28/ 26.5

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH56Q4CHN18        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D): 235×575×638mm

Packed dimensions (H×W×D):285×690×690mm

Net/Gross weight:15.0/17.0kg

Panel

Net dimensions (H×W×D): 65×620×620mm

Packed dimensions (H×W×D): 80×680×665mm

Net/Gross weight: 2.3/3.0kg

Cooling

Capacity:5.6kw

Power input:35w

Heating

Capacity: 6.3kw

Power input: 35w

Airflow rate(m3/h)

810/ 765/ 720/ 670/ 625/ 580/ 535

Sound pressure level(dB(A))

39/ 38/ 37/ 36/ 35/ 34/ 32

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH63Q4CHN18        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D): 235×575×638mm

Packed dimensions (H×W×D):285×690×690mm

Net/Gross weight:15.0/17.0kg

Panel

Net dimensions (H×W×D): 65×620×620mm

Packed dimensions (H×W×D): 80×680×665mm

Net/Gross weight: 2.3/3.0kg

Cooling

Capacity:6.3kw

Power input:50w

Heating

Capacity: 7.1kw

Power input: 50w

Airflow rate(m3/h)

905/ 855/ 805/ 755/ 705/ 655/ 605

Sound pressure level(dB(A))

43/ 42/ 40/ 38/ 36/ 35/ 33.5

Pipe connections

Liquid:Ø9.52/Ø15.9

Gas:OD Ø25
