Ducted Series – RAC

Ducted Series – RAC

Heating and Cooling Solutions、R32 DUCTED SYSTEMS

Features

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

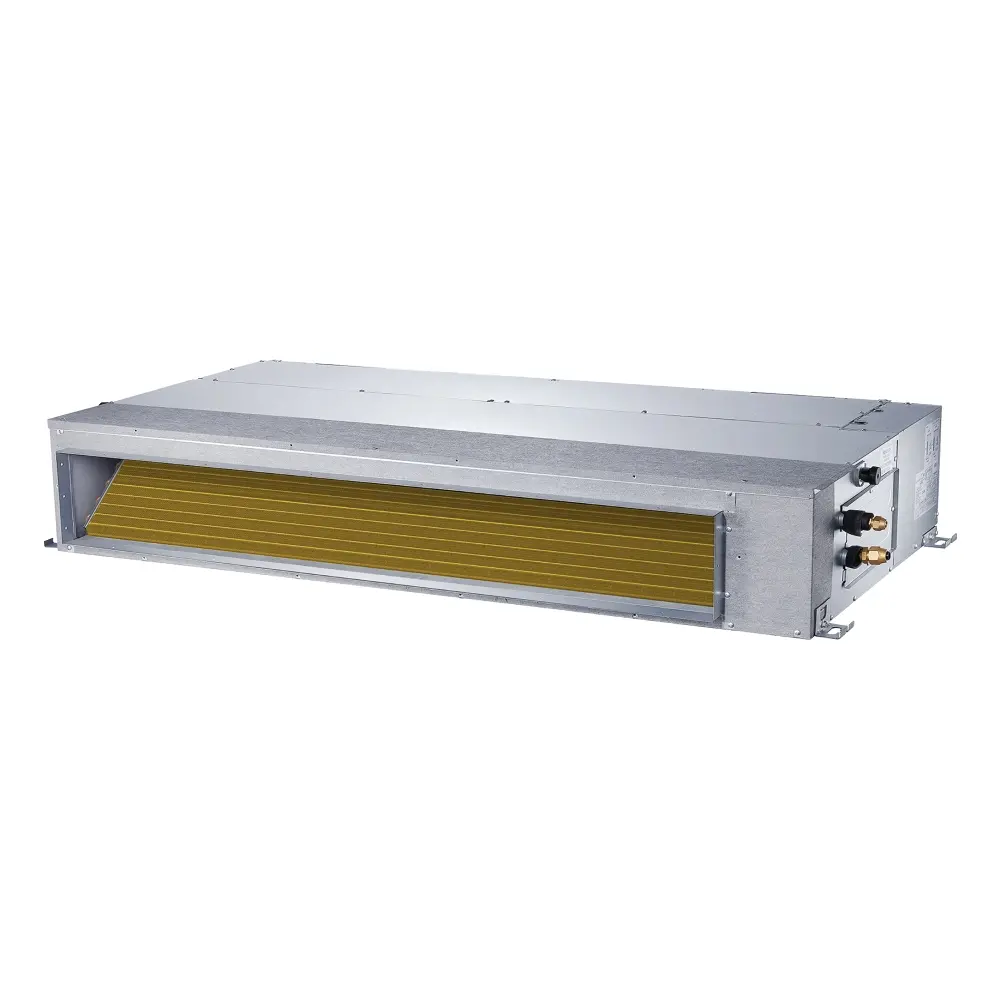

SELECTED MODEL:Model(Indoor): DUCMI70IB\Model(Outdoor): UCMI70OB

Specification

Indoor Airflow (Hi) 1400 m³/h

Middle Static Pressure

Slim Design

Noise Rating (Hi) 45 dB(A)

Adjustable ESP(0-160pa)

size

Indoor:1100 x 720 x 248mm/Net Weight(31 KG) & Gross Weight(38kg)

Outdoor:/

Capacity

Cooling Capacity 7.0kw

Hot

COOLING:

HEATING:

— — — — Specifications — — — —

SELECTED MODEL:Model(Indoor): DUCMI90IB\Model(Outdoor): UCMI90OB

Specification

Indoor Airflow (Hi) 1400 m³/h

Middle Static Pressure

Slim Design

Noise Rating (Hi) 45 dB(A)

Adjustable ESP(0-160pa)

size

Indoor: 1360 x 720 x 248mm/Indoor Net Weight(40kg) & Gross Weight(48.9 kg)

Outdoor: 946 x 410 x 810mm/Outdoor Net Weight(68.5kg) & Gross Weight(74 kg)

Capacity

Cooling Capacity 9.0kw

Heating Capacity 10.5kw

Hot

COOLING:

HEATING:

— — — — Specifications — — — —

SELECTED MODEL:Model(Indoor): DUCMI105IHB\Model(Outdoor): UCMI105OB

Specification

Indoor Airflow (Hi) 2000 m³/h

Middle Static Pressure

Slim Design

Noise Rating (Hi) 49 dB(A)

Adjustable ESP (0-160pa)

size

Indoor: 1360x720x248mm/Indoor Net Weight(40KG) & Gross Weight(61 KG)

Outdoor:Outdoor Net Weight(68.5KG) & Gross Weight(86.7 KG)

Capacity

Cooling Capacity 10.5kw

Heating Capacity 11.0kw

Hot

COOLING:

HEATING:

— — — — Specifications — — — —

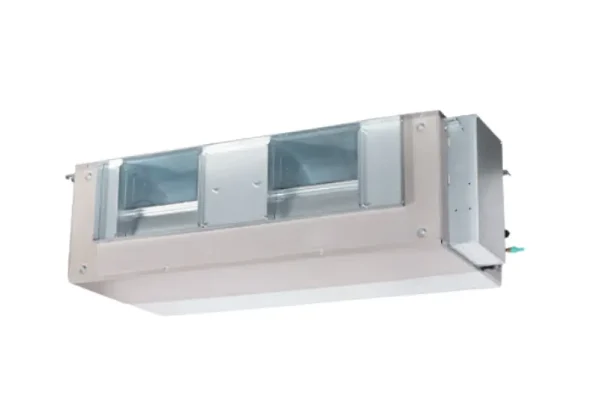

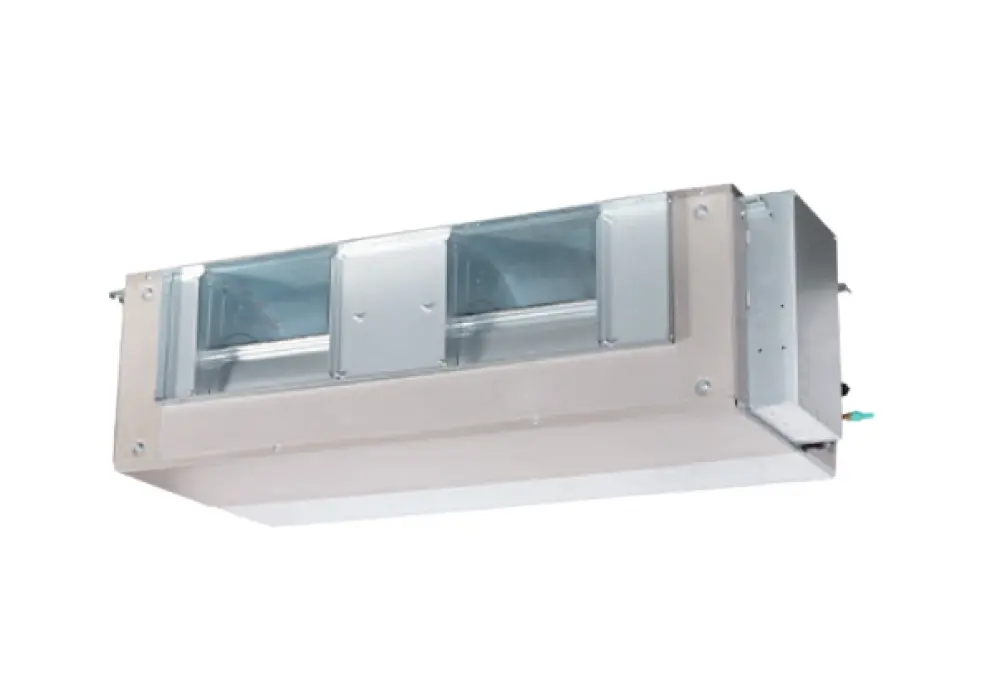

SELECTED MODEL:Model(Indoor): DUCMI125IHB\Model(Outdoor): UCMI125OB

Specification

Indoor Airflow (Hi) 3250 m³/h

High Static Pressure

Noise Rating (Hi) 49 dB(A)

Adjustable ESP(0-200pa)

size

Indoor: 1200 x 625 x 380mm/Indoor Net Weight(54KG) & Gross Weight(61KG)

Outdoor:Outdoor Net Weight(100KG) & Gross Weight(121.6KG)

Capacity

Cooling Capacity 12.5kw

Hot

COOLING:

HEATING:

— — — — Specifications — — — —

SELECTED MODEL:Model(Indoor): DUCMI140IHB\Model(Outdoor): UCMI140OB

Specification

Indoor Airflow (Hi) 3300 m³/h

High Static Pressure

Noise Rating (Hi) 49 dB(A)

Adjustable ESP(0-200pa)

size

Indoor: 1200 x 625 x 380mm/Indoor Net Weight(54KG) & Gross Weight(62.9KG)

Outdoor:Outdoor Net Weight(116KG) & Gross Weight(124.1KG)

Capacity

Cooling Capacity 14.0kw

Hot

COOLING:

HEATING:

— — — — Specifications — — — —

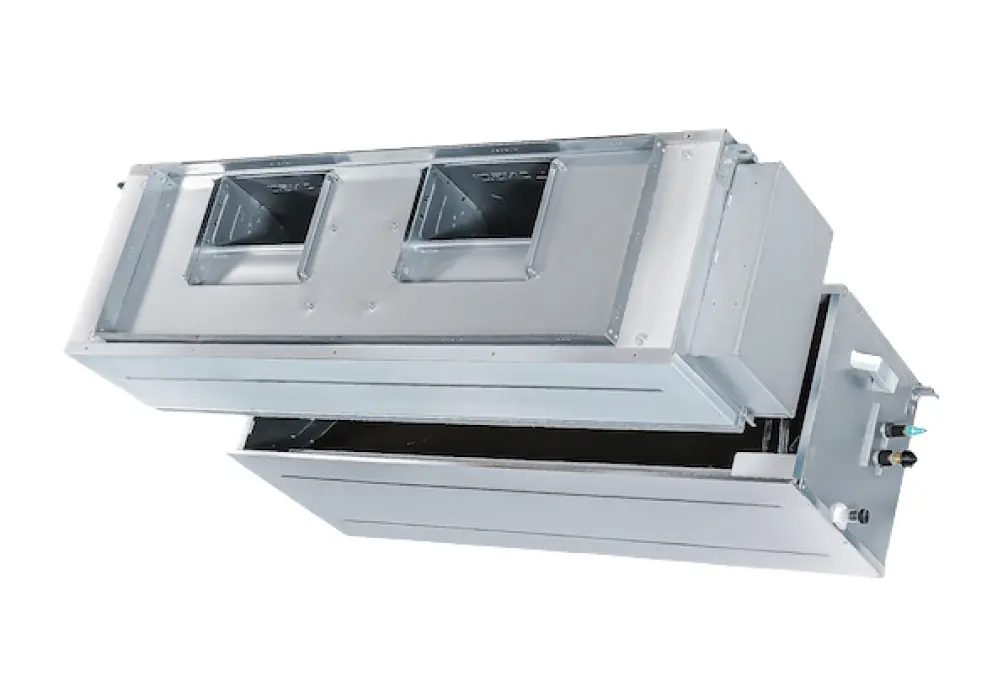

SELECTED MODEL:Model(Indoor): DUCMI170IHB\Model(Outdoor): UCMI170OB

Specification

Indoor Airflow (Hi) 3250 m³/h

High Static Pressure

Adjustable ESP(0-200pa)

size

Indoor: 440 x 1400 x 858mm/Indoor Net Weight(81.1KG) & Gross Weight(91.6KG)

Outdoor:1333 x 952 x 415mm/ Outdoor Net Weight(95.8KG) & Gross Weight(110KG)

Capacity

Cooling Capacity 17.0kw

Heating Capacity 17.5kw

Hot

COOLING:

HEATING:

Midea-R32 Ducted User Brochure

R32-Ducted-Brochure-06122023 (1)

R32 Ducted User Manual_7kw&9kw

R32 Ducted User Manual_10.5&12.5&14kw

R32 Ducted User Manual_17kw

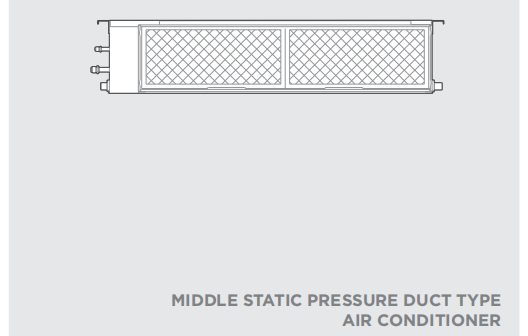

2024 09 03 111059 2024 09 03 11 13 11 020398

Ducted-R32_Installation-Caution

Ducted-R32_Installation_7kw&9kw

Ducted-R32_Installation_10.5&12.5&14kw

Ducted-R32_Installation_17kw

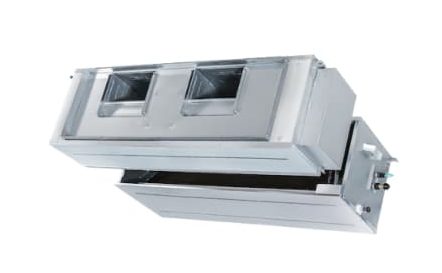

8f1ebdc048a9ea4 e1717599241441

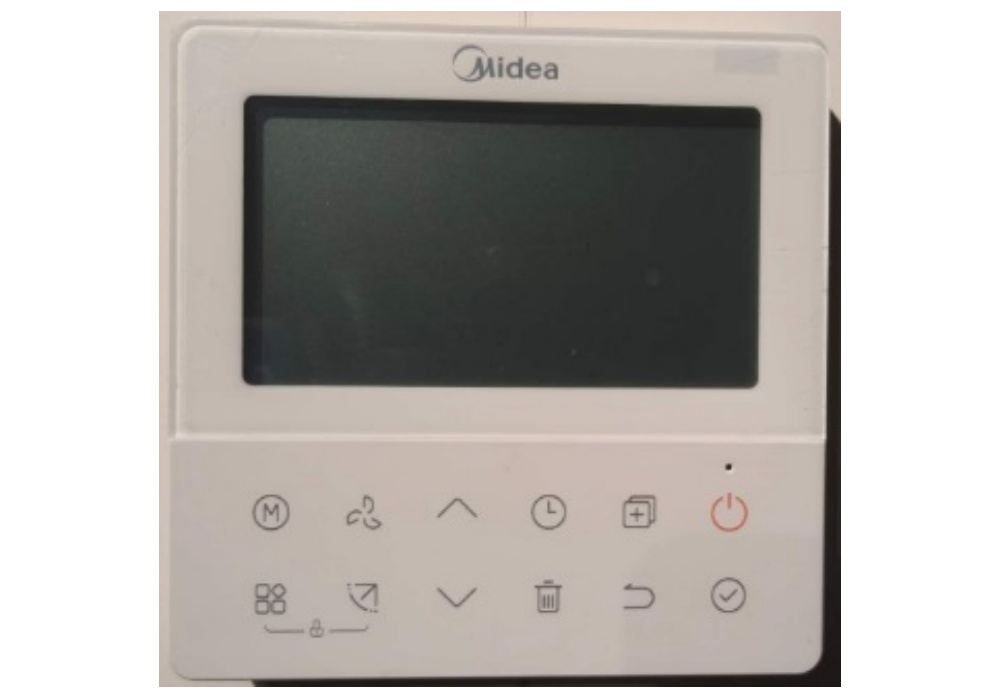

Wired-Controller-Installation-Manual

Wired-Controller-Installation-Manual
