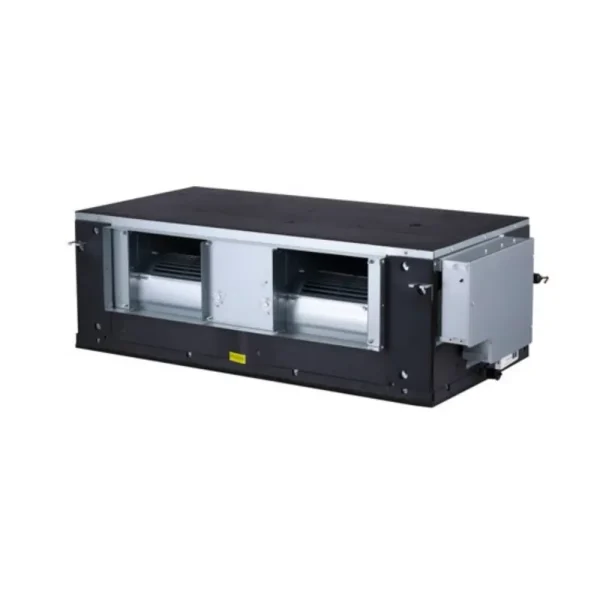

Fresh Air Processing Unit

Fresh Air Processing Unit

Fresh Air Processing Unit

VRF SYSTEMS

  • Indoor Units

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

SELECTED MODEL: MIH224FAHN18  POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：580×1310×1050mm

Packed dimensions (H×W×D): 725×1530×1060mm

Net/Gross weight: 132/148kg

Cooling

Capacity：22.4kw

Power input: 680w

Heating

Capacity：18.0kw

Power input: 680w

Airflow rate(m3/h)

3000/ 2800/ 2600/ 2400/ 2200/ 2000/ 1800

Sound pressure level(dB(A))

50/ 49/ 48/ 47/ 46/ 44/ 43

Pipe connections

Liquid: Ø9.52/Ø22.2

Gas：OD Ø32

— — — — Specifications — — — —

SELECTED MODEL: MIH252FAHN18  POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：580×1310×1050mm

Packed dimensions (H×W×D): 725×1530×1060mm

Net/Gross weight: 132/148kg

Cooling

Capacity：25.2kw

Power input: 680w

Heating

Capacity：20.0kw

Power input: 680w

Airflow rate(m3/h)

3000/ 2800/ 2600/ 2400/ 2200/ 2000/ 1800

Sound pressure level(dB(A))

50/ 49/ 48/ 47/ 46/ 44/ 43

Pipe connections

Liquid: Ø9.52/Ø22.2

Gas：OD Ø32

— — — — Specifications — — — —

SELECTED MODEL: MIH280FAHN18  POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：580×1310×1050mm

Packed dimensions (H×W×D): 725×1530×1060mm

Net/Gross weight: 132/148kg

Cooling

Capacity：28.0kw

Power input: 680w

Heating

Capacity：22.0kw

Power input: 680w

Airflow rate(m3/h)

3000/ 2800/ 2600/ 2400/ 2200/ 2000/ 1800

Sound pressure level(dB(A))

50/ 49/ 48/ 47/ 46/ 44/ 43

Pipe connections

Liquid: Ø9.52/Ø22.2

Gas：OD Ø32

— — — — Specifications — — — —

SELECTED MODEL: MIH335FAHN18  POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：580×1310×1050mm

Packed dimensions (H×W×D): 725×1530×1060mm

Net/Gross weight: 135/151kg

Cooling

Capacity：33.5kw

Power input: 710w

Heating

Capacity：27.0kw

Power input: 710w

Airflow rate(m3/h)

3000/ 2800/ 2600/ 2400/ 2200/ 2000/ 1800

Sound pressure level(dB(A))

52/ 51/ 50/ 49/ 48/ 46/ 44

Pipe connections

Liquid: Ø9.52/Ø22.2

Gas：OD Ø32

— — — — Specifications — — — —

SELECTED MODEL: MIH400FAHN18  POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：580×1860×1050mm

Packed dimensions (H×W×D): 725×2080×1060mm

Net/Gross weight: 175/195kg

Cooling

Capacity：40.0kw

Power input: 1170w

Heating

Capacity：32.0kw

Power input: 1170w

Airflow rate(m3/h)

4200/ 3900/ 3600/ 3300/ 3000/ 700/ 2400

Sound pressure level(dB(A))

58/ 56/ 55/ 53/ 51/ 49/ 48

Pipe connections

Liquid: Ø15.9/Ø28.6

Gas：OD Ø32

— — — — Specifications — — — —

SELECTED MODEL: MIH450FAHN18  POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：580×1860×1050mm

Packed dimensions (H×W×D): 725×2080×1060mm

Net/Gross weight: 175/195kg

Cooling

Capacity：45.0kw

Power input: 1170w

Heating

Capacity：36.0kw

Power input: 1170w

Airflow rate(m3/h)

4200/ 3900/ 3600/ 3300/ 3000/ 700/ 2400

Sound pressure level(dB(A))

58/ 56/ 55/ 53/ 51/ 49/ 48

Pipe connections

Liquid: Ø15.9/Ø28.6

Gas：OD Ø32

— — — — Specifications — — — —

SELECTED MODEL: MIH560FAHN18  POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：580×1860×1050mm

Packed dimensions (H×W×D): 725×2080×1060mm

Net/Gross weight: 180/200kg

Cooling

Capacity：56.0kw

Power input: 1760w

Heating

Capacity：45.0kw

Power input: 1760w

Airflow rate(m3/h)

6000/ 5600/ 5200/ 4800/ 4400/ 4000/ 3600

Sound pressure level(dB(A))

59/ 57/ 56/ 55/ 53/ 51/ 50

Pipe connections

Liquid: Ø15.9/Ø28.6

Gas：OD Ø32

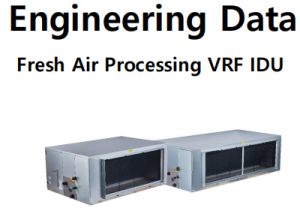

Midea_VRF_V8 FreshAir Processing Unit Brochure
