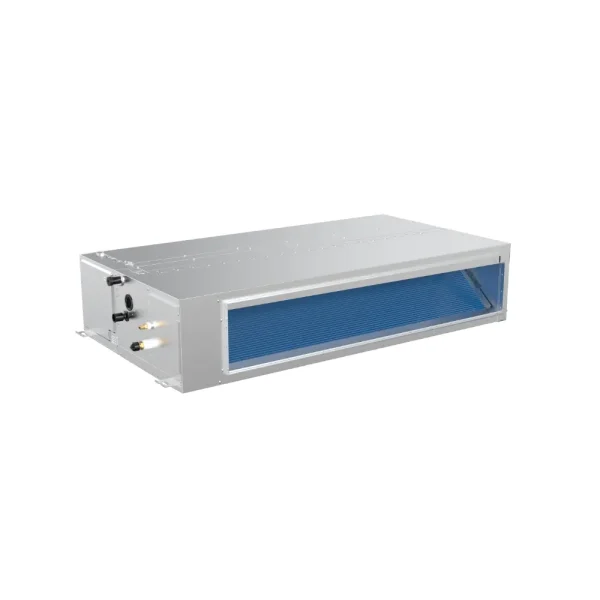

Small Airfow Rate Fresh Air Processing Unit

Small Airfow Rate Fresh Air Processing Unit

VRF SYSTEMS

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

SELECTED MODEL: MIH90FASHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D):299×1135×770mm

Packed dimensions (H×W×D): 359×1215×890mm

Net/Gross weight: 34.5/38kg

Cooling

Capacity:9.0kw

Power input: 128w

Heating

Capacity:5.7kw

Power input: 128w

Airflow rate(m3/h)

690/ 635/ 580/ 525/ 470/ 415/ 360

Sound pressure level(dB(A))

38/ 36.5/ 35/ 33.5/ 32/ 30.5/ 29

Pipe connections

Liquid: Ø9.52/Ø15.9

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH140FASHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D):299×1135×770mm

Packed dimensions (H×W×D): 359×1215×890mm

Net/Gross weight: 34.5/38kg

Cooling

Capacity:14.0kw

Power input: 184w

Heating

Capacity:8.9kw

Power input: 184w

Airflow rate(m3/h)

1080/ 990/ 900/ 810/ 720/ 630/ 540

Sound pressure level(dB(A))

42/ 40/ 38/ 36/ 34/ 32/ 30

Pipe connections

Liquid: Ø9.52/Ø15.9

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH160FASHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D):299×1135×770mm

Packed dimensions (H×W×D): 359×1215×890mm

Net/Gross weight: 34.5/38kg

Cooling

Capacity:16.0kw

Power input: 210w

Heating

Capacity:10.1kw

Power input: 210w

Airflow rate(m3/h)

1230/ 1130/ 1030/ 930/ 830/ 730/ 630

Sound pressure level(dB(A))

43/ 41/ 39/ 37/ 35/ 33/ 31

Pipe connections

Liquid: Ø9.52/Ø15.9

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH224FASHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D):299×1485×770mm

Packed dimensions (H×W×D): 359×1565×890mm

Net/Gross weight: 46/50kg

Cooling

Capacity:22.4kw

Power input: 252w

Heating

Capacity:13.9kw

Power input: 252w

Airflow rate(m3/h)

1680/ 1540/ 1400/ 1260/ 1120/ 980/ 840

Sound pressure level(dB(A))

46/ 44/ 42/ 40/ 38/ 36/ 34

Pipe connections

Liquid: Ø9.52/Ø19.1

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH280FASHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D):299×1485×770mm

Packed dimensions (H×W×D): 359×1565×890mm

Net/Gross weight: 46/50kg

Cooling

Capacity:28.0kw

Power input: 284w

Heating

Capacity:17.4kw

Power input: 284w

Airflow rate(m3/h)

2100/ 1930/ 1760/ 1590/ 1420/ 1250/ 1080

Sound pressure level(dB(A))

48/ 46/ 44/ 42/ 40/ 38/ 36

Pipe connections

Liquid: Ø9.52/Ø22.2

Gas:OD Ø25
