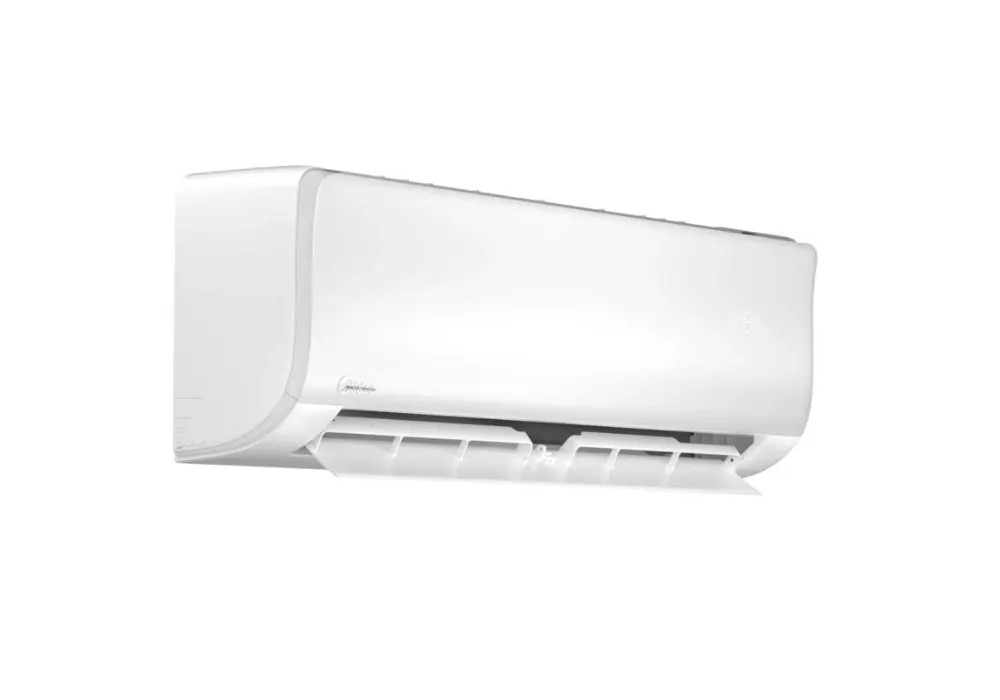

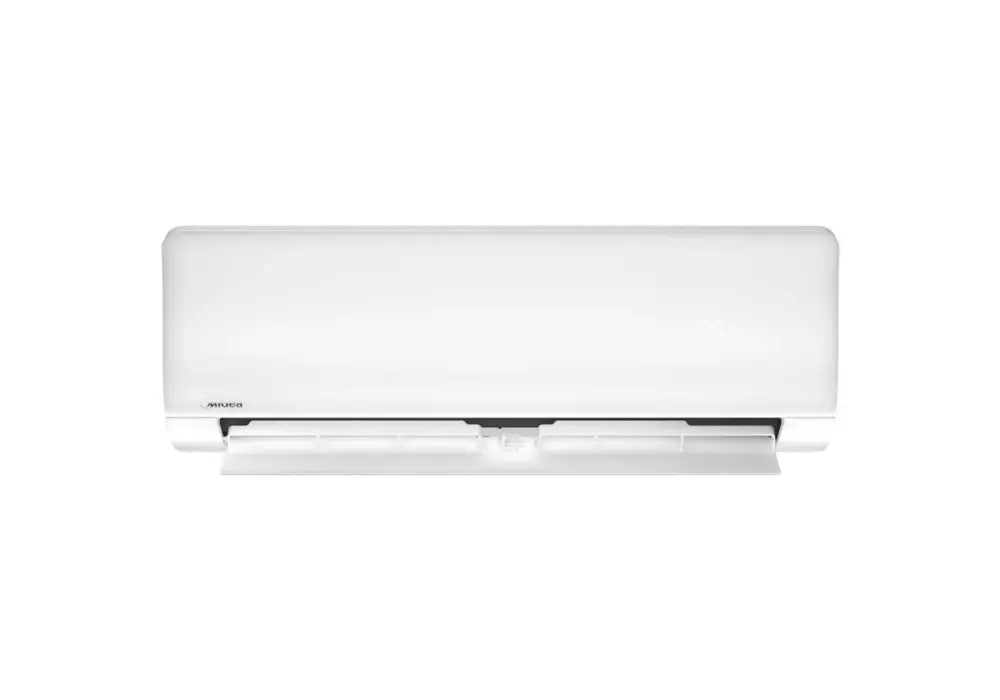

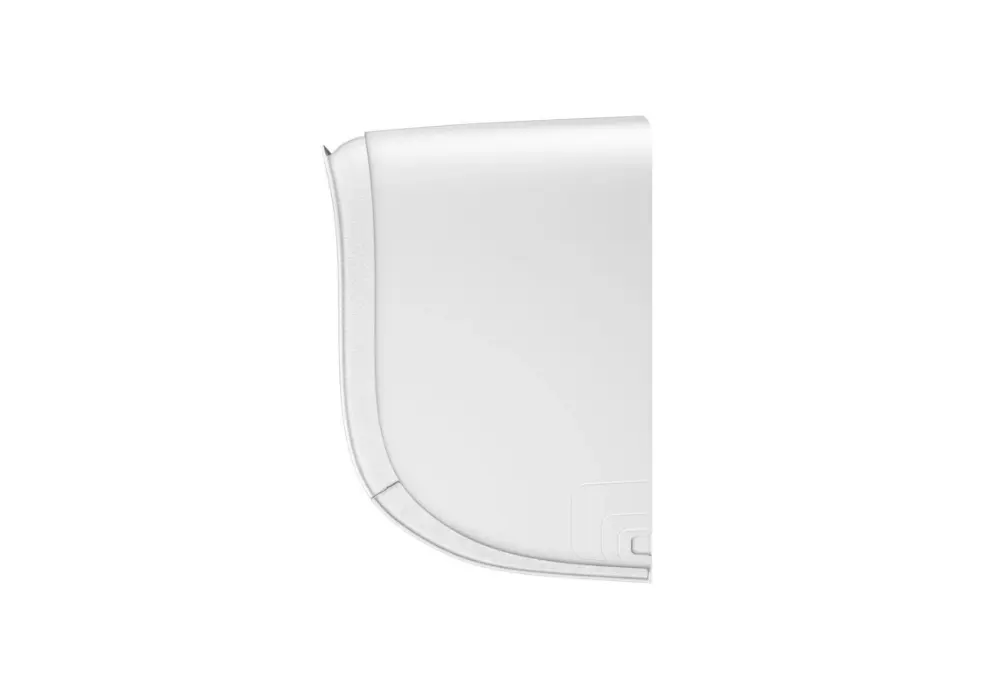

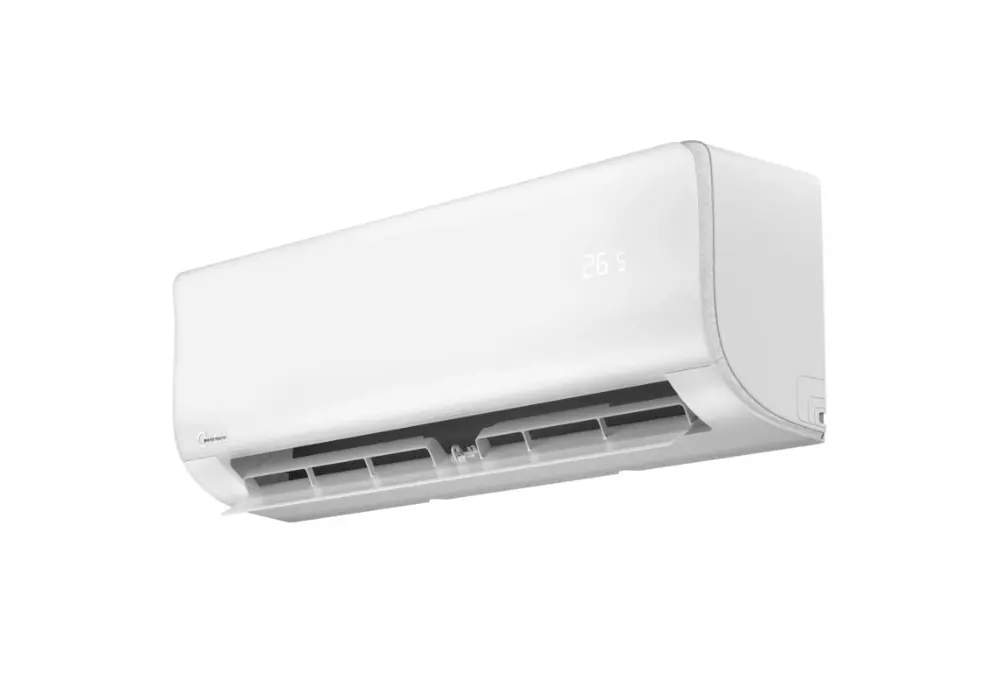

Xtreme Series

Xtreme Series

Coming in reverse cycle models, the XtremeSave series are best suited from small to large spaces.

Features

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

SELECTED MODEL:Model:MFAB-20WC/MFAB-20NC

indoor

Product Dimension(WxDxH): 726x210x291mm

Package Dimension(WxDxH): 775x255x355mm

Net/Gross weight: 8.0/10.3Kg

Outdoor

Product Dimension(WxDxH): 765x303x555mm

Package Dimension (WxDxH): 877x327x590mm

Net/Gross weight: 26.5/30.7Kg

Application Area: 9~13㎡

Cooling:
Hot Zone: 6.0 Star
Mixed Zone: 5.0 Star
Cold Zone: 5.5 Star

Heating:
Hot Zone: 3.5 Star
Mixed Zone: 3.0 Star
Cold Zone: 3.0 Star

— — — — Specifications — — — —

SELECTED MODEL:Model:MFAB-35WC/MFAB-35NC

indoor

Product Dimension(WxDxH): 835x208x295mm

Package Dimension(WxDxH): 890x275x340mm

Net/Gross weight: 8.5/11.1Kg

Outdoor

Product Dimension(WxDxH): 805x330x554mm

Package Dimension (WxDxH): 905x360x590mm

Net/Gross weight: 32.2/34.9Kg

Application Area: 16~23㎡

Cooling:
Hot Zone: 5.0 Star
Mixed Zone: 4.5 Star
Cold Zone: 5.0 Star

Heating:
Hot Zone: 4.0 Star
Mixed Zone: 3.0 Star
Cold Zone: 2.5 Star

— — — — Specifications — — — —

SELECTED MODEL:Model:MFAB-50WC/MFAB-50NC

indoor

Product Dimension(WxDxH): 969x241x320mm

Package Dimension(WxDxH): 1030x300x390mm

Net/Gross weight: 11.1/15.5Kg

Outdoor

Product Dimension(WxDxH): 890x342x673mm

Package Dimension (WxDxH): 985x388x720mm

Net/Gross weight: 38.3/41.4Kg

Application Area:23~33㎡

Cooling:
Hot Zone: 4.5 Star
Mixed Zone: 4.0 Star
Cold Zone: 4.5 Star

Heating:
Hot Zone: 3.0 Star
Mixed Zone: 2.5 Star
Cold Zone: 2.0 Star

— — — — Specifications — — — —

SELECTED MODEL:Model:MFAB-60WC/MFAB-60NC

indoor

Product Dimension(WxDxH): 969x241x320mm

Package Dimension(WxDxH): 1030x300x390mm

Net/Gross weight: 11.1/15.5Kg

Outdoor

Product Dimension(WxDxH): 890x342x673mm

Package Dimension (WxDxH): 985x388x720mm

Net/Gross weight: 38.3/41.4Kg

Application Area: 27~40㎡

Cooling:
Hot Zone: 4.0 Star
Mixed Zone: 3.5 Star
Cold Zone: 4.5 Star

Heating:
Hot Zone: 3.0 Star
Mixed Zone: 2.5 Star
Cold Zone: 2.0 Star

— — — — Specifications — — — —

SELECTED MODEL:Model:MFAB-71WC/MFAB-71NC

indoor

Product Dimension(WxDxH): 1083x244x336mm

Package Dimension(WxDxH): 1140x300x400mm

Net/Gross weight: 13.3/17.0Kg

Outdoor

Product Dimension(WxDxH): 890x342x673mm

Package Dimension (WxDxH): 985x388x720mm

Net/Gross weight: 43.3/46.4Kg

Application Area: 32~47㎡

Cooling:
Hot Zone: 3.5 Star
Mixed Zone: 3.5 Star
Cold Zone: 4.0 Star

Heating:
Hot Zone: 3.0 Star
Mixed Zone: 2.5 Star
Cold Zone: 1.5 Star

— — — — Specifications — — — —

SELECTED MODEL:Model:MFAB-81WC/MFAB-81NC

indoor

Product Dimension(WxDxH): 1083x244x336mm

Package Dimension(WxDxH): 1140x300x400mm

Net/Gross weight: 13.3/17.0Kg

Outdoor

Product Dimension(WxDxH): 890x342x673mm

Package Dimension (WxDxH): 985x388x720mm

Net/Gross weight: 43.3/46.4Kg

Application Area:36~53㎡

Cooling:
Hot Zone: 3.5 Star
Mixed Zone: 3.5 Star
Cold Zone: 3.5 Star

Heating:
Hot Zone: 3.0 Star
Mixed Zone: 2.0 Star
Cold Zone: 1.5 Star

— — — — Specifications — — — —

SELECTED MODEL:Model: MFAB-26WC/MFAB-26NC

indoor

Product Dimension(WxDxH): 835x208x295mm

Package Dimension(WxDxH): 890x275x340mm

Net/Gross weight: 8.5/11.1Kg

Outdoor

Product Dimension(WxDxH): 805x330x554mm

Package Dimension (WxDxH): 905x360x590mm

Net/Gross weight: 32.2/34.9Kg

Application Area:11~17㎡

Cooling:
Hot Zone: 6.5 Star
Mixed Zone: 5.5 Star
Cold Zone: 6.5 Star

Heating:
Hot Zone: 4.0 Star
Mixed Zone: 3.5 Star
Cold Zone: 3.0 Star

Midea-Split-System-Brochure

Midea-Split-System-Brochure_compressed

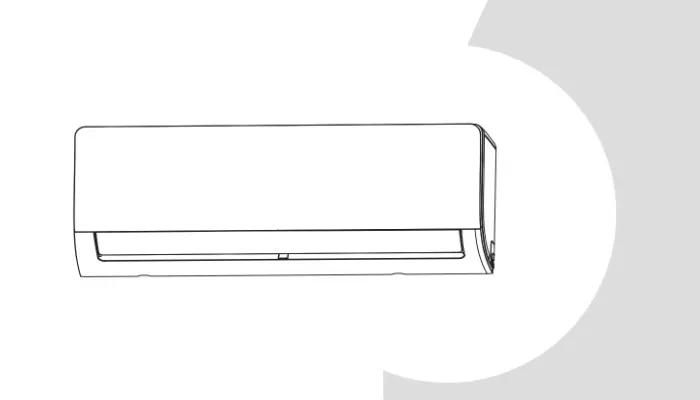

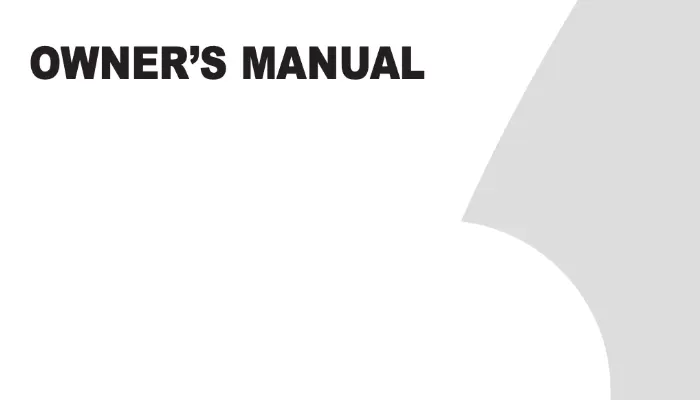

Xtreme-Save-Split-User-ManualInstallation-Manual

Xtreme-Save-Split-User-ManualInstallation-Manual

Xtreme-Remote-Controller-Manual

Xtreme-Remote-Controller-Manual
3df9a3a50eb658f scaled e1717657910384

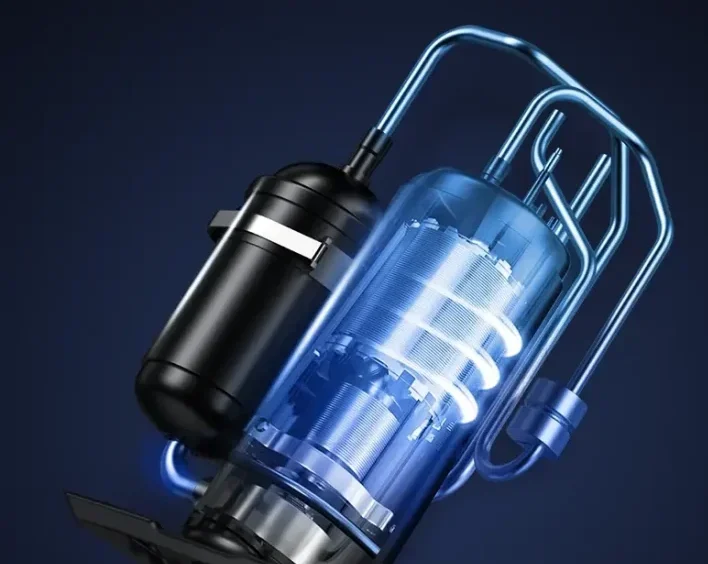

High-frequency Racer Tech

Like a racing roadster, this tech enables the compressor to achieve maximum frequency in split of the moment (57Hz within 6s) upon start up, providing you powerful cooling once the air conditioner is on.

9f968adbb15bada e1717657628547

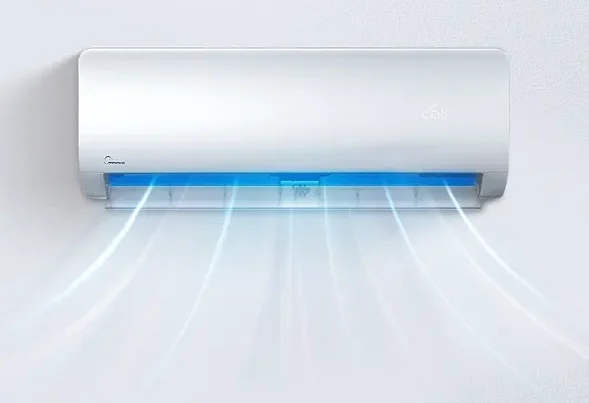

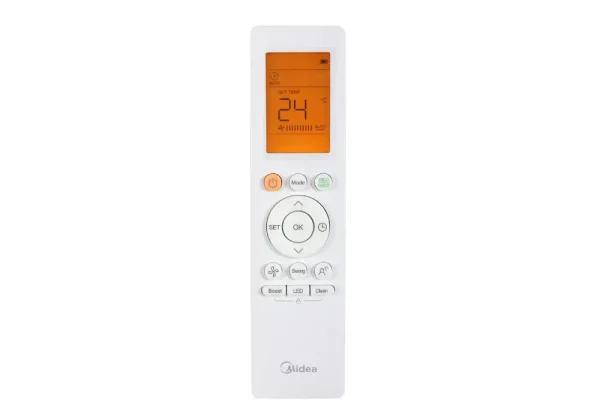

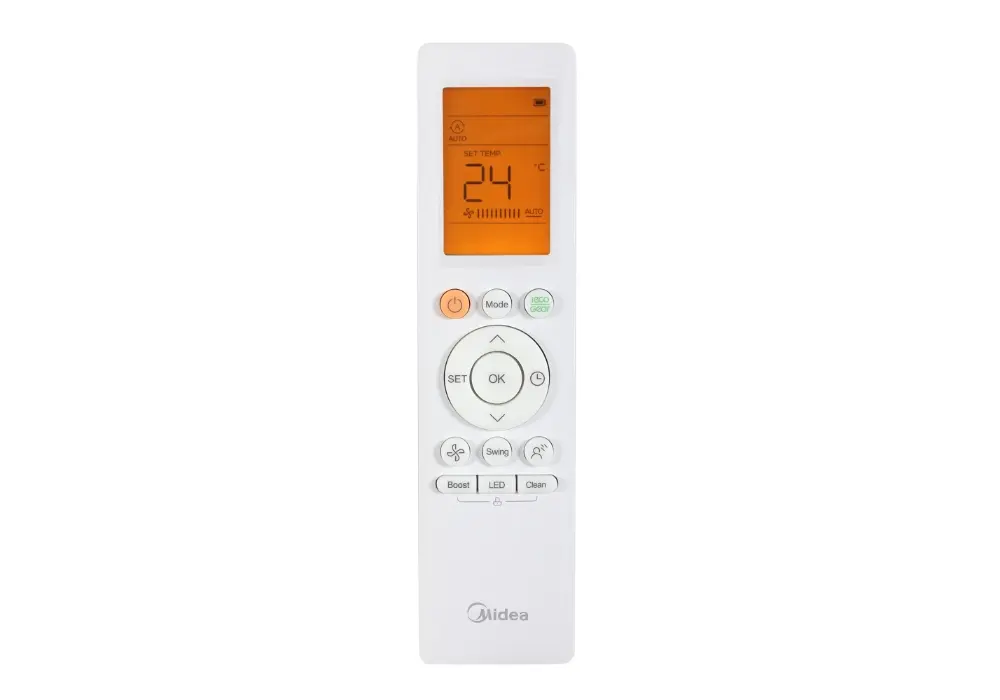

Follow Me

The remote control has a temperature sensor built-in to sense its surrounding temperatures. The unit can adjust the room temperature more accurately and provide more tailored comfort cooling.

5afec476f60195d scaled e1717657861160

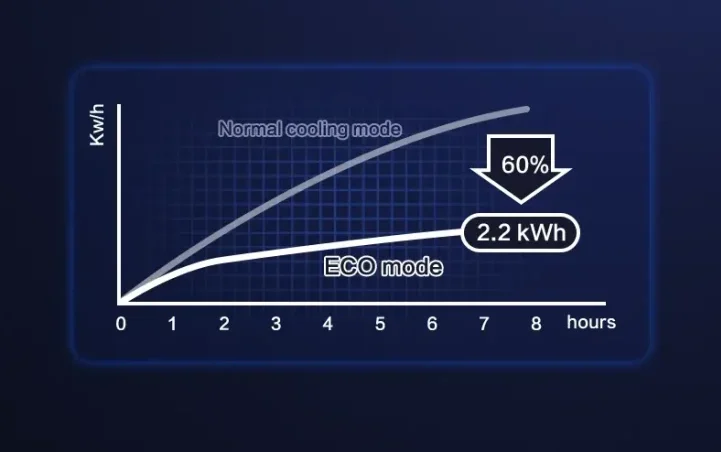

2.2 kWh per night

Just touch the ECO button to activate the mode. Your AC can keep you cool over an 8-hour night period with as low as 2.2 kWh energy consumption, saving 60%.

7aa3af3c78eb76d scaled e1717657680706

Strong and sturdy

Golden Fin is more resistant to oxidation & corrosion than ordinary fins for condensers to furnish a steadier and long- lasting working environment. It can efficiently prevent bact era from breeding and spreading, and withstand corrosive elements.

a7e37d2c26645e8 scaled e1717657970344

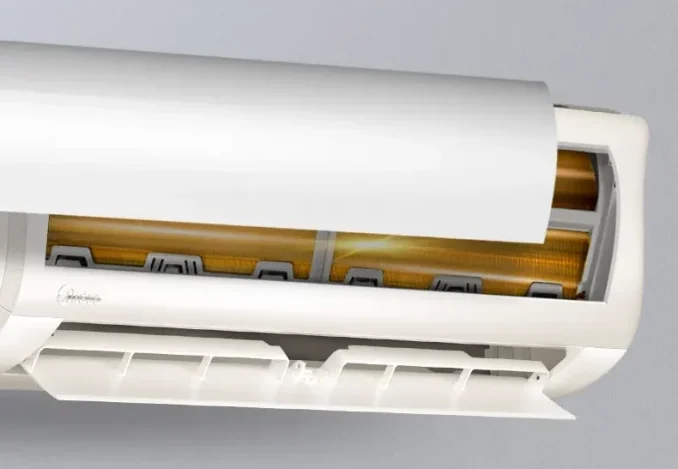

Golden Fin

Golden Fin is more resistant to oxidation & corrosion than ordinary fins for condensers to furnish a steadier and long- lasting working environment. It can efficiently prevent bact era from breeding and spreading, and withstand corrosive elements.

29d0372f2a75ce6 scaled e1717657797249

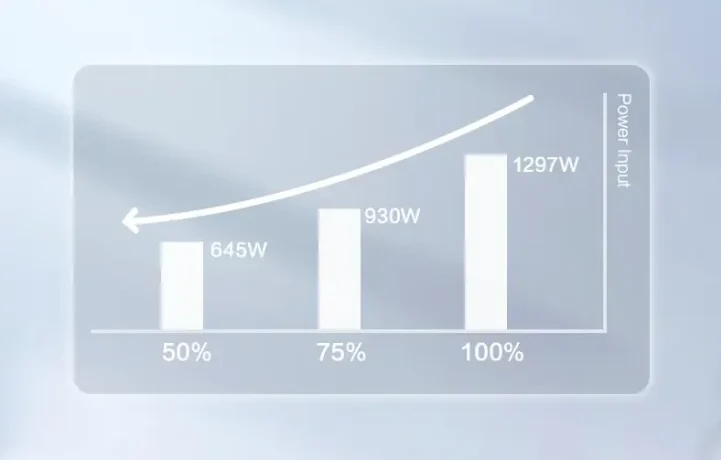

GEAR mode

Midea inverter air conditioners offer three operating power options: 50%, 75%, and 100%. You can choose a lower power level to conserve energy.

Why Choose Midea Air Conditioner

Reliable and Quality

Reliable and Quality

Designed and built for the most extreme conditions globally, with the operating range from -20°C to 55°C.
