Name: Arc Duct - Midea
Price: 64.00 EUR
Availability: InStock

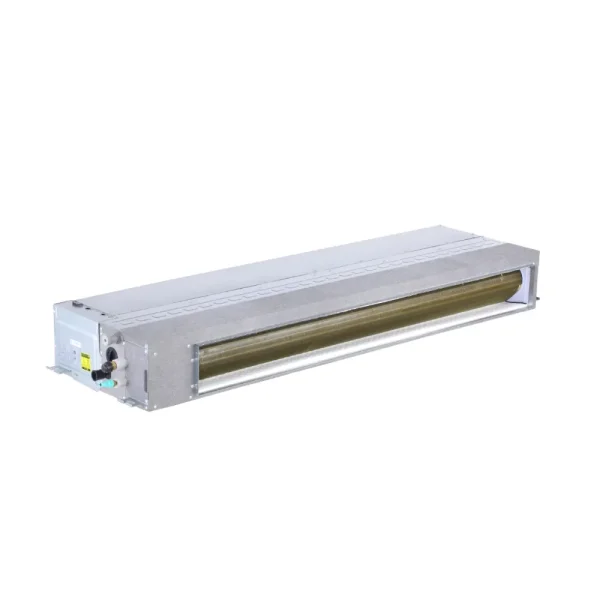

Arc Duct

Features

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

Model			MIH15T3HN18	MIH22T3HN18	MIH28T3HN18	MIH36T3HN18
Power supply			1-phase, 220-240V, 50/60Hz
Cooling1	Capacity	kW	1.5	2.2	2.8	3.6
	Capacity	kBtu/h	5.1	7.5	9.6	12.3
	Input	W	21	22	28	31
Heating2	Capacity	kW	1.8	2.5	3.2	4
	Capacity	kBtu/h	6.1	8.5	10.9	13.7
	Input	W	21	22	28	31
Airlow rate3		m3/h	340/335/329/320/307/298/290	370/347/339/322/314/306/295	460/431/413/380/351/323/300	605/557/508/453/414/365/320
External static pressure4		Pa	10 (10-50)	10 (10-50)	10 (10-50)	10 (10-50)
Sound pressure level5		dB(A)	27/26/25.5/24.5/23.5/22.5/22	28/27.5/26.5/25.5/24.5/23.5/22	30/29.5/28.5/27.5/26/24.5/22	30/29.5/28.5/27.5/26.5/25.5/25
Sound power level5		dB(A)	43.5/43/42.5/42/41.5/41/40	46/45/44/43/42/41/40	50.5/49/47/45.5/43.5/42/40	50.5/49.5/48/47/45.5/44.5/43
Unit	Net dimensions6 (W×H×D)	mm	550×199×450	550×199×450	550×199×450	700×199×450
	Packed dimensions (W×H×D)	mm	715×255×525	715×255×525	715×255×525	865×255×525
	Net/Gross weight	kg	11.5/13.5	11.5/13.5	11.5/13.5	13.0/15.5
Pipe	Liquid/Gas pipe	mm	Ф6.35/Ф12.7	Ф6.35/Ф12.7	Ф6.35/Ф12.7	Ф6.35/Ф12.7
connections	Drain pipe	mm	OD Ф25	OD Ф25	OD Ф25	OD Ф25

— — — — Specifications — — — —

Model			MIH45T3HN18	MIH56T3HN18	MIH71T3HN18	MIH80T3HN18
Power supply			1-phase, 220-240V, 50/60Hz
Cooling1	Capacity	kW	4.5	5.6	7.1	8
	Capacity	kBtu/h	15.4	19.1	24.2	27.3
	Input	W	43	58	65	108
Heating2	Capacity	kW	5	6.3	8	9
	Capacity	kBtu/h	17.1	21.5	27.3	30.7
	Input	W	43	58	65	108
Airlow rate3		m3/h	800/770/701/629/557/506/435	900/800/761/682/603/549/470	1145/1033/957/860/763/671/580	1400/1327/1249/1175/1095/1026/960
External static pressure4		Pa	10 (10-50)	10 (10-50)	10 (10-50)	20(10-80)
Sound pressure level5		dB(A)	33/32.5/32/30.5/29/27.5/26	36/34.5/33.5/32.5/31/29/27	37/35/34/32.5/31/30/29	36.5/35.5/34/33/32/31.5/30.5
Sound power level5		dB(A)	52/50.5/49/47.5/46/44.5/43	56/54/52/50/48/46/44	57/55.5/54/52/50.5/49/47	57/56/54.5/53.5/52/51/49.5
Unit	Net dimensions6 (W×H×D)	mm	900×199×450	900×199×450	1100×199×450	1600×199×450
	Packed dimensions (W×H×D)	mm	1065×255×525	1065×255×525	1300×255×525	1780×250×525
	Net/Gross weight	kg	16.5/19.5	16.5/19.5	20/23.5	28/32.5
Pipe	Liquid/Gas pipe	mm	Ф6.35/Ф12.7	Ф6.35/Ф12.7	Ф9.52/Ф15.9	Ф9.52/Ф15.9
connections	Drain pipe	mm	OD Ф25	OD Ф25	OD Ф25	OD Ф25

— — — — Specifications — — — —

Model			MIH90T3HN18	MIH112T3HN18
Power supply			1-phase, 220-240V, 50/60Hz
Cooling1	Capacity	kW	9	11.2
	Capacity	kBtu/h	30.7	38.2
	Input	W	108	128
Heating2	Capacity	kW	10	12.5
	Capacity	kBtu/h	34.1	42.7
	Input	W	108	128
Airlow rate3		m3/h	1400/1327/1249/1175/1095/1026/960	1620/1522/1433/1343/1254/1170/1080
External static pressure4		Pa	20(10-80)	20(10-80)
Sound pressure level5		dB(A)	36.5/35.5/34/33/32/31.5/30.5	39.5/38/36.5/35/34/32.5/31.5
Sound power level5		dB(A)	57/56/54.5/53.5/52/51/49.5	60.5/59/57.5/55.5/54/52.5/50.5
Unit	Net dimensions6 (W×H×D)	mm	1600×199×450	1600×199×450
	Packed dimensions (W×H×D)	mm	1780×250×525	1780×250×525
	Net/Gross weight	kg	28/32.5	28/32.5
Pipe	Liquid/Gas pipe	mm	Ф9.52/Ф15.9	Ф9.52/Ф15.9
connections	Drain pipe	mm	OD Ф25	OD Ф25

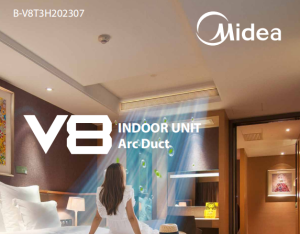

Midea_V8_Arc_Duct_VRF Brochure

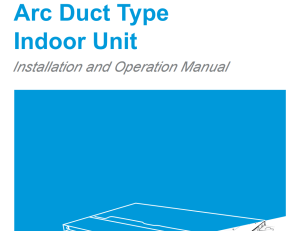

Midea_V8 Arc duct IDU--INSTALLATION MANUAL

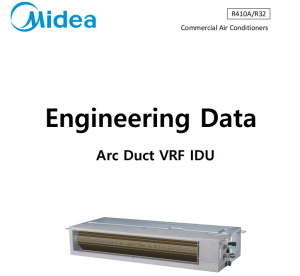

Midea_V8_Arc_Duct_VRF Engineering Data Book
