Name: High Static Pressure Duct - Midea
Price: 64.00 EUR
Availability: InStock

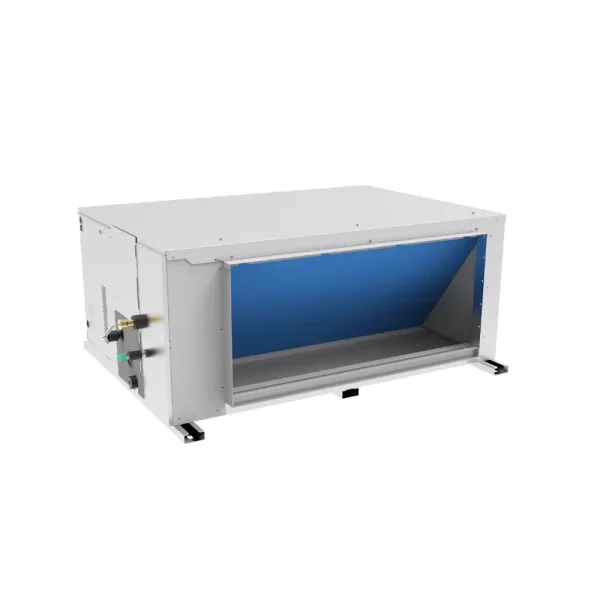

High Static Pressure Duct

Features

5.6kW-16kW ESP up to 250Pa
20kW-56kW ESP up to 400Pa
299mm ultra-thin height (5.6kW-16kW)
Static pressure adaption, constant air volume supply
Built-in 1200mm high-lift drain pump
Optional HEPA filter with H13 rating
Optional medium to high efficiency filter

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

Capacity	Model	Power	Indoor unit
Capacity	Model	Power	Net dimensions (H×W×D)	/	Packed dimensions (H×W×D)	Net/Gross weight
5.6kw	MIH56T1HN18	1-phase, 220-240V, 50/60Hz	299×1050×750mm		359×1215×890mm	35/38.5kg
7.1kw	MIH71T1HN18
8.0kw	MIH80T1HN18
9.0kw	MIH90T1HN18
11.2kw	MIH112T1HN18		299×1400×750mm		359×1565×890mm	44.5/48.5kg
12.5kw	MIH125T1HN18					46.5/50.5kg
14.0kw	MIH140T1HN18
16.0kw	MIH160T1HN18
20.0kw	MIH200T1HN18		580×1300×900mm		730×1530×1060mm	125/150kg
22.4kw	MIH224T1HN18
25.2kw	MIH252T1HN18
28.0kw	MIH280T1HN18
33.5kw	MIH335T1HN18				725×1530×1060mm	128/153kg
40.0kw	MIH400T1HN18		580×1850×900mm		730×2080×1060mm	166/204kg
45.0kw	MIH450T1HN18					166/204kg
56.0kw	MIH560T1HN18					170/208kg

Cooling		Heating		Airflow rate(m3/h)	Sound pressure level(dB(A))	Pipe connections
Capacity	Power input	Capacity	Power input	Airflow rate(m3/h)	Sound pressure level(dB(A))	Liquid	Gas
5.6kw	159w	6.3kw	159w	1360/1281/1201/1122/1043/963/884	39/38/36/35/33/32/30	Ø6.35/Ø12.7	OD Ø25
7.1kw	159w	8.0kw	159w	1360/1281/1201/1122/1043/963/884		Ø9.52/Ø15.9
8.0kw	159w	9.0kw	159w	1360/1281/1201/1122/1043/963/884
9.0kw	196w	10.0kw	196w	1500/1413/1325/1238/1150/1063/975	40/39/37/36/34/33/31
11.2kw	248w	12.5kw	248w	2140/2015/1890/1766/1641/1516/1391	41/40/38/37/35/34/32
12.5kw	252w	14.0kw	252w	2150/2025/1899/1774/1649/1523/1398	41/40/39/37/36/35/33
14.0kw	284w	16.0kw	284w	2400/2260/2120/1980/1840/1700/1560	43/42/40/39/37/36/34
16.0kw	339w	18.0kw	339w	2600/2448/2297/2145/1993/1842/1690	44/43/41/40/38/37/35
20.0kw	780w	22.5kw	780w	4700/4387/4073/3760/3447/3133/2820	51/50/48/46/44/43/42	Ø9.52/Ø19.1	OD Ø32
22.4kw	780w	25.0kw	780w			Ø9.52/Ø19.1
25.2kw	780w	26.0kw	780w			Ø12.7/Ø22.2
28.0kw	780w	31.5kw	780w
33.5kw	810w	38.0kw	810w		52/51/49/48/46/44/43	Ø12.7/Ø25.4
40.0kw	1850w	45.0kw	1850w	7500/7000/6500/6000/5500/5000/4500	58/56/54/52/50/49/48	Ø12.7/Ø25.4
45.0kw	1850w	56.0kw	1850w	7500/7000/6500/6000/5500/5000/4500	58/56/54/52/50/49/48	Ø15.9/Ø28.6
56.0kw	1850w	63.0kw	1850w	8400/7840/7280/6720/6160/5600/5040	59/58/56/54/53/51/49	Ø15.9/Ø28.6

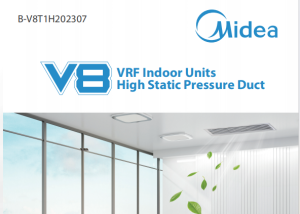

Midea_V8 High Static Pressure Duct_VRF_Brochure

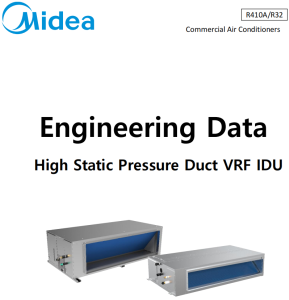

Midea_V8 High Static Pressure Duct_VRF_Engineering Data Book

Midea_V8 High Static Pressure

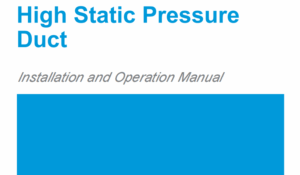

MIH200T1HN18(S)--Installation Manual
