Hot Water Heat Pump (All-In-One-System)

Hot Water Heat Pump (All-In-One-System)

Australia’s #1 Selling Heat Pump Brand

Features

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — Specifications — — — —

SELECTED MODEL:RSJ-15/190RDN7-L2

Specification

Storage size (L)  170

Running ambient temp – HP only (°C)  -7 ~ 43

Running ambient temp – HP & E-Heater (°C)   -20 ~ 47

Out water Temp. (°C)

Default 60°C, 55°C~70°

size

Dimension (DxH) (mm)

552 x 552 x 1692

Net/gross weight (kg)  95.5 / 119

Sound pressure level (dB(A))  47

Refrigerant type/quantity (kg)

R290 / 0.29

size

Power supply (Ph / V / Hz)

1 / 220~240 / 50

Capacity – HP Only (kW)  1.8

COP (kW/kW)  4.2

Max. current (A)  8.5

size

Air flow (L/S)  150

Water inlet pipe (mm)   DN20

Water outlet pipe (mm)  DN20

Drainage pipe (mm)  DN20

PT valve joint (mm)  DN15

Max. pressure (kPa)  850

— — — — Specifications — — — —

SELECTED MODEL:RSJ-V28/235RDN7-L2

Specification

Storage size (L)  235

Running ambient temp – HP only (°C)  -7 ~ 43

Running ambient temp – HP & E-Heater (°C)   -20 ~ 45

Out water Temp. (°C)

Default 60°C, 55°C~70°

size

Dimension (DxH) (mm)

650 x 650 x 1730

Net/gross weight (kg)  125/ 154.5

Sound pressure level (dB(A))  45

Refrigerant type/quantity (kg)

R290 / 0.29

size

Power supply (Ph / V / Hz)

1 / 220~240 / 50

Capacity – HP Only (kW)  2.8

COP (kW/kW)  4.8

Max. current (A)  9

size

Air flow (L/S)  222

Water inlet pipe (mm)   DN20

Water outlet pipe (mm)  DN20

Drainage pipe (mm)  DN20

PT valve joint (mm)  DN15

Max. pressure (kPa)  850

— — — — Specifications — — — —

SELECTED MODEL:RSJ-23/300RDN7-L2

Specification

Storage size (L)  280

Running ambient temp – HP only (°C)  -7 ~ 43

Running ambient temp – HP & E-Heater (°C)   -20 ~ 47

Out water Temp. (°C)

Default 60°C, 55°C~70°

size

Dimension (DxH) (mm)

650 x 650 x 1962

Net/gross weight (kg)  138 / 170

Sound pressure level (dB(A))  48

Refrigerant type/quantity (kg)

R290 / 0.42

size

Power supply (Ph / V / Hz)

1 / 220~240 / 50

Capacity – HP Only (kW)  2.5

COP (kW/kW)  4.6

Max. current (A)  9

size

Air flow (L/S)  222

Water inlet pipe (mm)   DN20

Water outlet pipe (mm)  DN20

Drainage pipe (mm)  DN20

PT valve joint (mm)  DN15

Max. pressure (kPa)  850

Midea-Heat Pump Brochure

2025 03 05 173247 2025 03 05 17 33 05 668258 e1748565127564

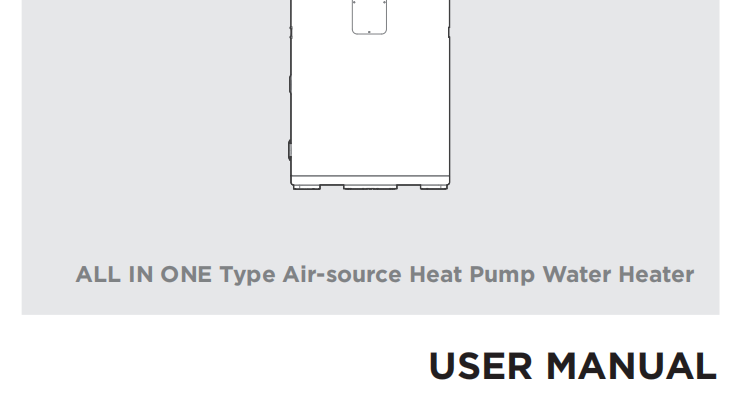

Midea-Heat Pump User Manual
