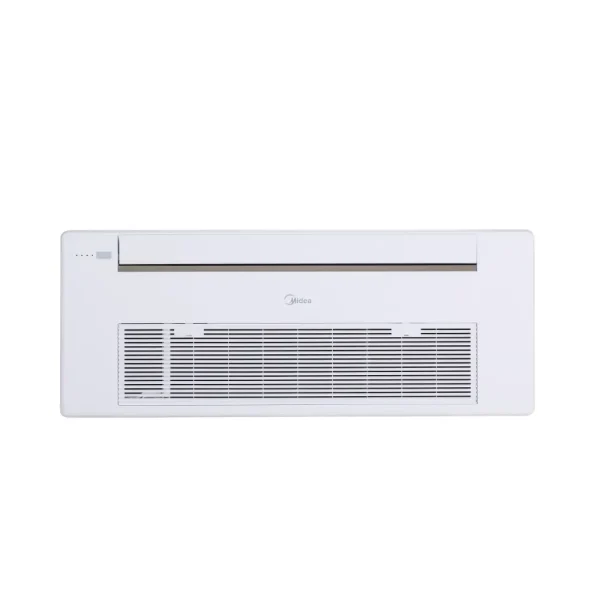

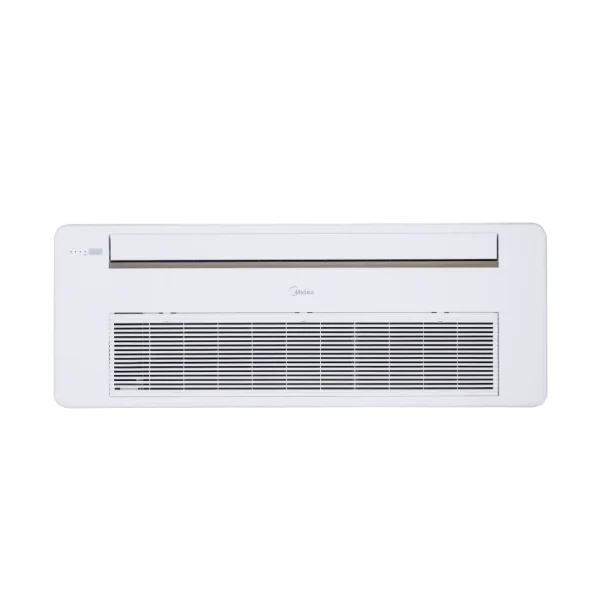

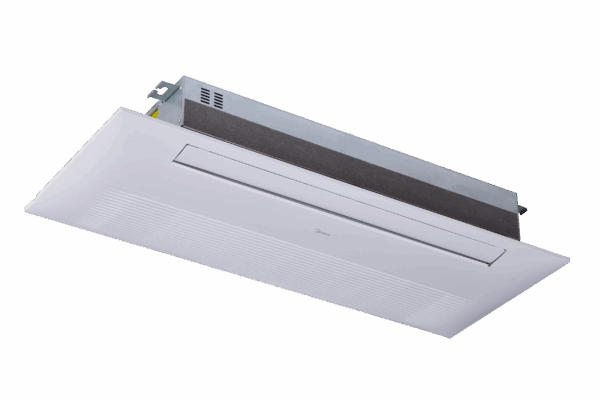

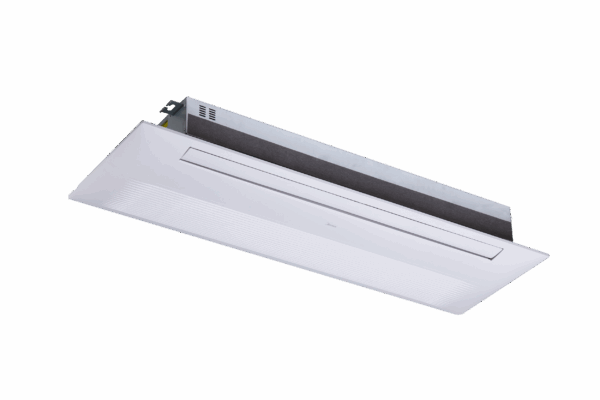

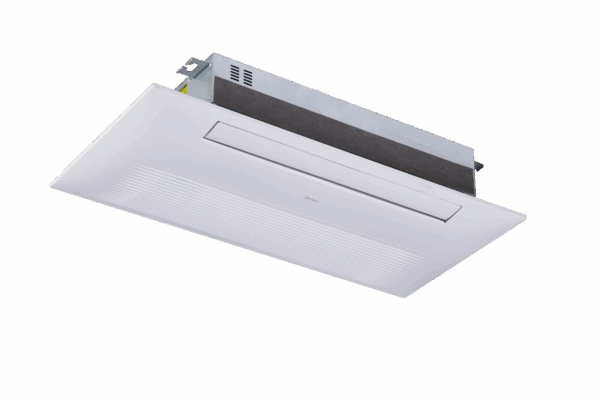

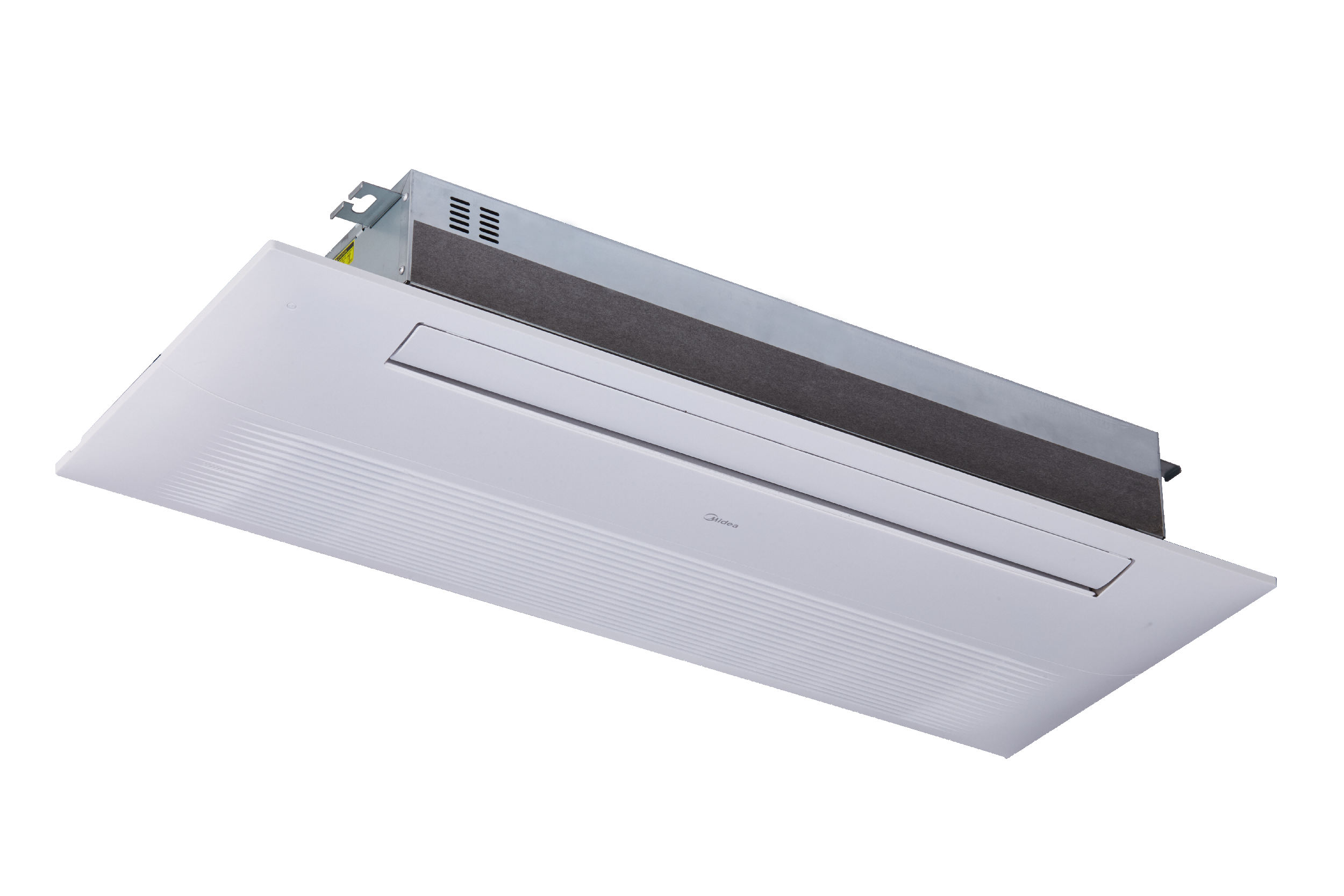

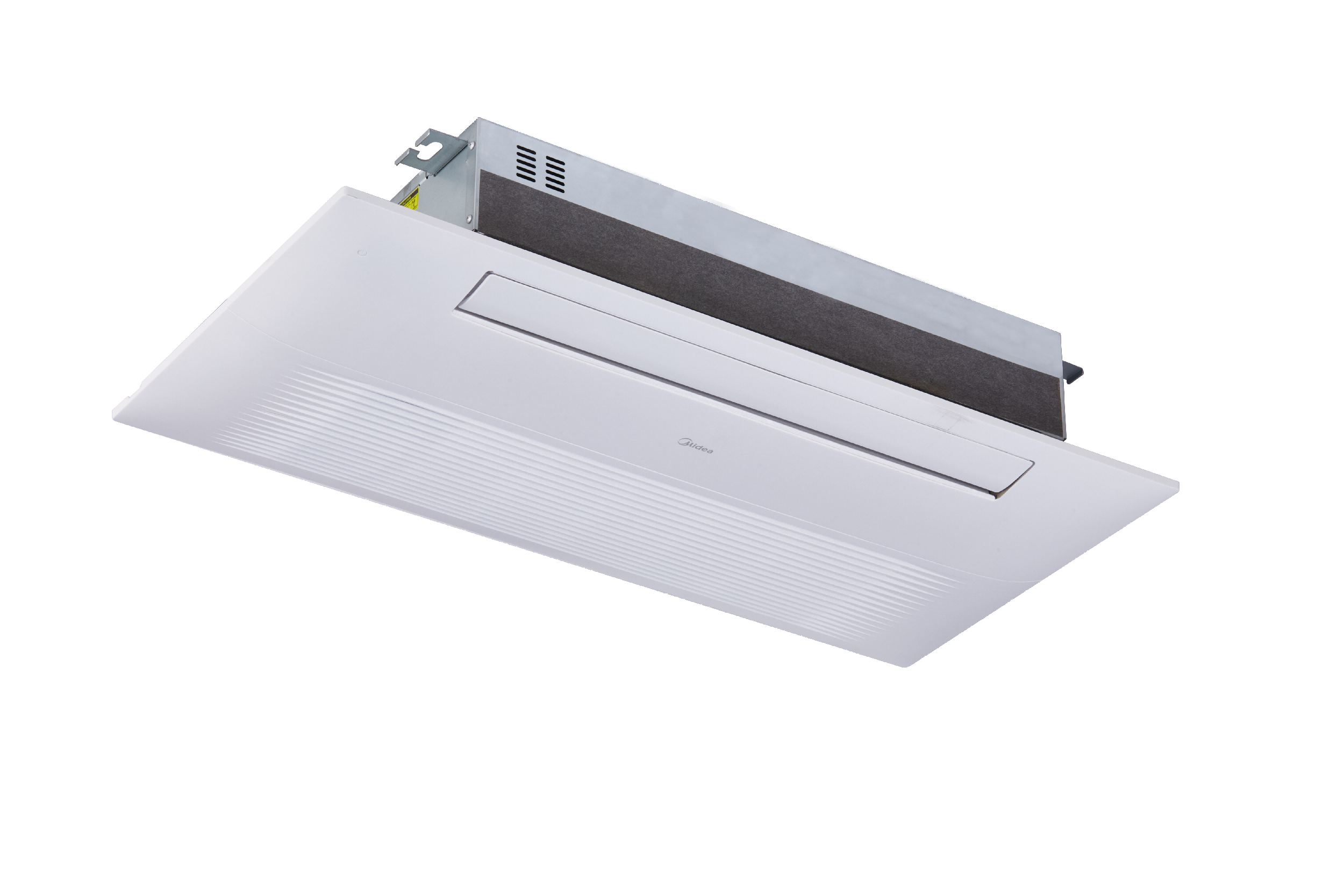

One-Way Cassette

One-Way Cassette

VRF SYSTEMS

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

SELECTED MODEL: MIH18Q1HN18(A)        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (W×H×D): 700×130×425mm

Packed dimensions (W×H×D):880×225×510mm

Net/Gross weight:9.6/11.9kg

Panel

Net dimensions (W×H×D): 980×64×475mm

Packed dimensions (W×H×D): 1070×100×560mm

Net/Gross weight: 2.4/4.4kg

Cooling

Capacity:1.8kw

Power input:15w

Heating

Capacity: 2.0kw

Power input: 15w

Airflow rate(m3/h)

300/283/266/250/233/216/200

Sound pressure level(dB(A))

28/27/26/25/24/23/23

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH22Q1HN18(A)        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (W×H×D): 700x130x425mm

Packed dimensions (W×H×D):880x225x510mm

Net/Gross weight:9.6/11.9kg

Panel

Net dimensions (W×H×D): 980x64x475mm

Packed dimensions (W×H×D): 1070x100x560mm

Net/Gross weight: 2.4/4.4kg

Cooling

Capacity:2.2kw

Power input:19w

Heating

Capacity: 2.5kw

Power input: 19w

Airflow rate(m3/h)

400/375/350/325/300/275/250

Sound pressure level(dB(A))

32/30/29/28/27/26/25

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL:  MIH28Q1HN18(A)       POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (W×H×D): 900x130x425mm

Packed dimensions (W×H×D):1080x225x510mm

Net/Gross weight:11.2/13.8kg

Panel

Net dimensions (W×H×D): 1180x64x475mm

Packed dimensions (W×H×D): 1270x100x560mm

Net/Gross weight: 3/5.2kg

Cooling

Capacity:2.8kw

Power input:27w

Heating

Capacity: 3.2kw

Power input: 27w

Airflow rate(m3/h)

550/464/428/392/356/320/285

Sound pressure level(dB(A))

33/31/30/29/27/26/25

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH36Q1HN18(A)        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (W×H×D): 900x130x425mm

Packed dimensions (W×H×D):1080x225x510mm

Net/Gross weight:12.2/14.7kg

Panel

Net dimensions (W×H×D): 1180x64x475mm

Packed dimensions (W×H×D): 1270x100x560mm

Net/Gross weight: 3/5.2kg

Cooling

Capacity:3.6kw

Power input:29w

Heating

Capacity: 4.0kw

Power input: 29w

Airflow rate(m3/h)

550/469/439/409/378/348/318

Sound pressure level(dB(A))

36/34/33/32/30/29/28

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH45Q1HN18(A)        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (W×H×D): 1200x130x425mm

Packed dimensions (W×H×D):1280x225x510mm

Net/Gross weight:14.3/17.7kg

Panel

Net dimensions (W×H×D): 1480x64x475mm

Packed dimensions (W×H×D): 1570x100x560mm

Net/Gross weight: 3.8/6.5kg

Cooling

Capacity:4.5kw

Power input:30w

Heating

Capacity: 5.0kw

Power input: 30w

Airflow rate(m3/h)

850/702/655/607/560/512/465

Sound pressure level(dB(A))

39/37/36/35/34/33/32

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH56Q1HN18(A)        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (W×H×D): 1200x130x425mm

Packed dimensions (W×H×D):1280x225x510mm

Net/Gross weight:15.5/18.8kg

Panel

Net dimensions (W×H×D): 1480x64x475mm

Packed dimensions (W×H×D): 1570x100x560mm

Net/Gross weight: 3.8/6.5kg

Cooling

Capacity:5.6kw

Power input:40w

Heating

Capacity: 6.3kw

Power input: 40w

Airflow rate(m3/h)

1000/845/791/737/683/629/575

Sound pressure level(dB(A))

45/43/42/40/39/37/36

Pipe connections

Liquid:Ø6.35/Ø12.7

Gas:OD Ø25

— — — — Specifications — — — —

SELECTED MODEL: MIH71Q1HN18(A)        POWER:1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (W×H×D): 1200x130x425mm

Packed dimensions (W×H×D):1280x225x510mm

Net/Gross weight:15.5/18.8kg

Panel

Net dimensions (W×H×D): 1480x64x475mm

Packed dimensions (W×H×D): 1570x100x560mm

Net/Gross weight: 3.8/6.5kg

Cooling

Capacity:7.1kw

Power input:52w

Heating

Capacity: 8.0kw

Power input: 52w

Airflow rate(m3/h)

1050/916/853/790/726/663/600

Sound pressure level(dB(A))

47/45/44/43/42/41/40

Pipe connections

Liquid:Ø9.52/Ø15.9

Gas:OD Ø25

Midea_VRF_V8 One-way Cassette Brochure

wechat 2025 07 08 091653 890

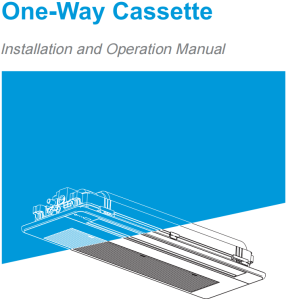

Midea_VRF_V8 One-way Cassette INSTALLATION MANUAL

2024 08 09 110805 2024 08 09 11 09 08 395641

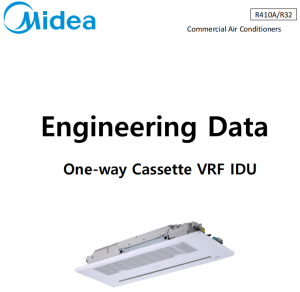

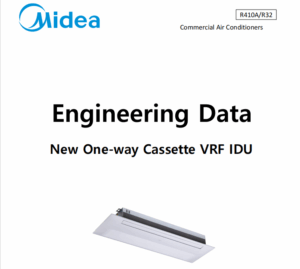

Midea_VRF_V8 One-way Cassette Engineering Data Book
