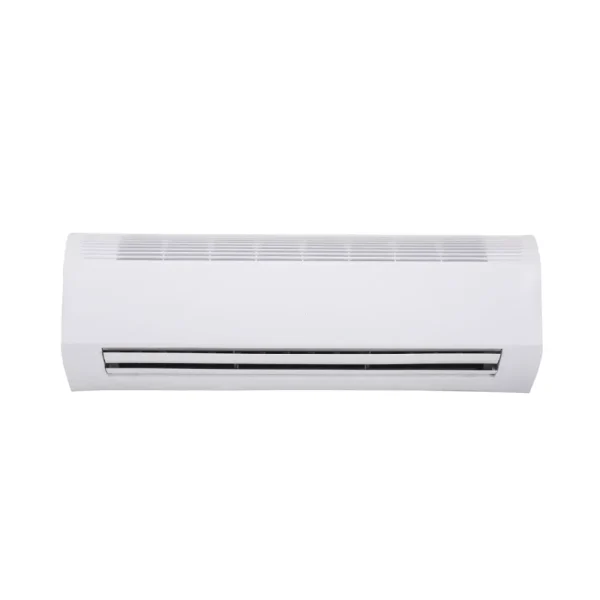

VEU Series Indoor units

VRF SYSTEMS

SELECT A CAPACITY TO VIEW SPECIFICATIONS

— — — — — SINGLE PHASE

— — — — Specifications — — — —

SELECTED MODEL: MIH15GHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：295x750x265mm

Packed dimensions (H×W×D): 385x875x360mm

Net/Gross weight: 10/12.5kg

Cooling

Capacity：1.5kw

Power input: 18w

Heating

Capacity：1.7kw

Power input: 18w

Sound pressure level(dB(A))

Pipe connections

32/ 31/ 30/ 30/ 29/ 28/ 27

Liquid: Ø6.35

Gas：Ø12.7

— — — — Specifications — — — —

SELECTED MODEL: MIH22GHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：295x750x265mm

Packed dimensions (H×W×D): 385x875x360mm

Net/Gross weight: 10/12.5kg

Cooling

Capacity：2.2kw

Power input: 21w

Heating

Capacity：2.4kw

Power input: 21w

Sound pressure level(dB(A))

Pipe connections

33/ 32/ 31/ 30/ 29/ 28/ 27

Liquid: Ø6.35

Gas：Ø12.7

— — — — Specifications — — — —

SELECTED MODEL: MIH28GHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：295x750x265mm

Packed dimensions (H×W×D): 385x875x360mm

Net/Gross weight: 10/12.5kg

Cooling

Capacity：2.8kw

Power input: 24w

Heating

Capacity：3.2kw

Power input: 24w

Sound pressure level(dB(A))

Pipe connections

35/ 34/ 33/ 32/ 31/ 30/ 28

Liquid: Ø6.35

Gas：Ø12.7

— — — — Specifications — — — —

SELECTED MODEL: MIH36GHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：295x750x265mm

Packed dimensions (H×W×D): 385x875x360mm

Net/Gross weight: 10/12.5kg

Cooling

Capacity：3.6kw

Power input: 27w

Heating

Capacity：4.0kw

Power input: 27w

Sound pressure level(dB(A))

Pipe connections

37/ 36/ 34/ 33/ 31/ 30/ 28

Liquid: Ø6.35

Gas：Ø12.7

— — — — Specifications — — — —

SELECTED MODEL: MIH45GHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：295×950×265mm

Packed dimensions (H×W×D): 385×1075×360mm

Net/Gross weight: 11.5/14.5kg

Cooling

Capacity：4.5kw

Power input: 30w

Heating

Capacity：5.0kw

Power input: 30w

Sound pressure level(dB(A))

Pipe connections

37/ 35/ 33/ 32/ 31/ 30/ 29

Liquid: Ø6.35

Gas：Ø12.7

— — — — Specifications — — — —

SELECTED MODEL: MIH56GHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：295×950×265mm

Packed dimensions (H×W×D): 385×1075×360mm

Net/Gross weight: 11.5/14.5kg

Cooling

Capacity：5.6kw

Power input: 40w

Heating

Capacity：6.3kw

Power input: 40w

Sound pressure level(dB(A))

Pipe connections

41/ 39/ 37/ 35/ 33/ 31/ 29

Liquid: Ø6.35

Gas：Ø12.7

— — — — Specifications — — — —

SELECTED MODEL: MIH71GHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：295×1200×265mm

Packed dimensions (H×W×D): 385×1315×360mm

Net/Gross weight: 15/18kg

Cooling

Capacity：7.1kw

Power input: 50w

Heating

Capacity：8.0kw

Power input: 50w

Sound pressure level(dB(A))

Pipe connections

44/ 42/ 40/ 38/ 36/ 34/ 32

Liquid: Ø6.35

Gas：Ø12.7

— — — — Specifications — — — —

SELECTED MODEL: MIH80GHN18 POWER: 1-phase, 220-240V, 50/60Hz

Indoor unit

Net dimensions (H×W×D)：295×1200×265mm

Packed dimensions (H×W×D): 385×1315×360mm

Net/Gross weight: 15/18kg

Cooling

Capacity：8.0kw

Power input: 65w

Heating

Capacity：9.0kw

Power input: 65w

Sound pressure level(dB(A))

Pipe connections

45/ 43/ 41/ 39/ 37/ 35/ 32

Liquid: Ø9.52

Gas：Ø15.9

Midea_VRF_V8 Wall Mounted Brochure

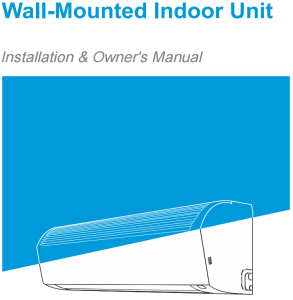

Midea_VRF_V8 Wall Mounted INSTALLATION MANUAL

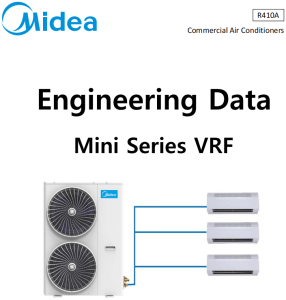

MiMidea_VRF_V8 Wall Mounted Engineering Data Book
