VRF Systems

VRF Systems

Whether you manage a house, an appartment, a small office, a multi-level commercial building, an industry facility, or a shopping center, Midea offers a comprehensive range of VRF solutions designed to deliver precise climate control tailored to your specific needs.

Features

  • VEU approved product, high VEECs
  • All flare connections, the easiest VRF to install
  • Longer Piping Capability
  • Full DC Inverter Technology
  • Wide Operation Range
  • Ceiling mounting
  • Hi-lift drain pump

Features

  • R32 referigerant
  • Hyperlink, support any topology communication with super anti-interference capability
  • Optional M-Holmes technology reduces installation space constraints and increase the safety
  • Futher upgraded META technology to maximize energy saving
  • Futher upgraded ZEN AIR technology to maximize comfort
  • Further upgraded DOCTOR technology to maximize easy service
  • Easy transportation and long piping capability
  • Wide choice of indoor units; Wide choice of control solutions

Features

  • High efficiency DC inverter compressor and DC fan motors;
  • Wide operating range: cooling from -5 to 55 °C; heating from -20 to 24 °C;
  • Refrigerant cooling PCB, guaranteeing reliable operation at high temperature
  • Smaller foot print by side air-discharge
  • Connect up to 16 infoor units.
  • Flexible piping design
  • Precise oil control technology
  • Auto addressing

Features

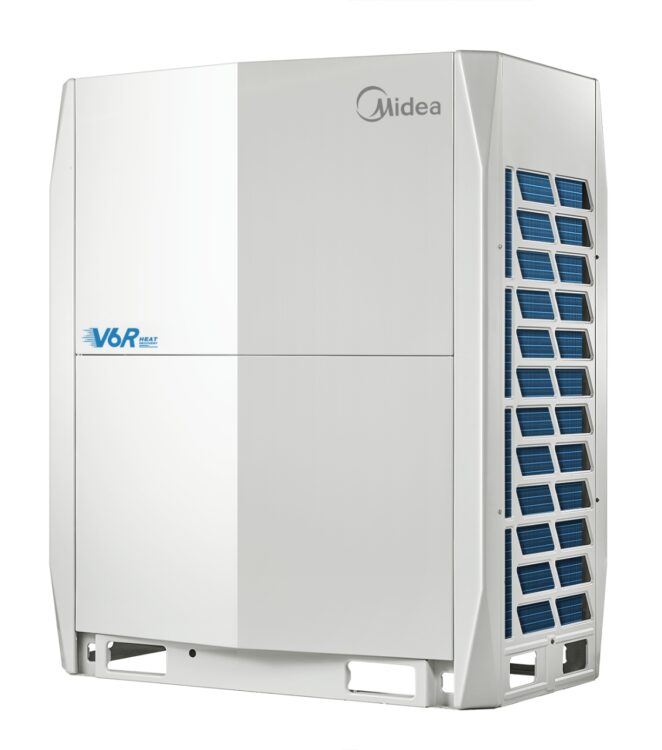

  • TOTAL SOLUTION:

Simultaneous Heating & Cooling / Hot Water/ AHU/ Air Curtain , Fresh Air / Refrigerant Leak Detection / Total controller

  • HIGH EFFICIENCY :

Heat Recovery , Maxium Energy Saving/ Energy Management System ( EMS) / Plate Heat Exchanger Subcooling

  • WIDE APPLICATION RANGE:

Wide Capacity / Wide Operation Range/ Long Piping Capability / Duty Cycling / Backup Operation

  • ENHANCED COMFORT :

Night Silent Mode/ Enhanced Heating Capacity/ Continuous Heating During Defrost Mode / Hot Water Supply

  • EASY INSTALLATION AND SERVICE :

Auto Addressing / Real-time Refrigerant amount Monitoring / ESP Up to 80 Pa/ External Multifunctional PCB/ Ease of Maintenance

  • WIDE CHOICE OF IDUS :

Cassette/ Ducted/ Ceiling & Floor / Fresh Air/ HRV

Features :

  • Hyperlink, support any topology communication with super anti-interference capability
  • Shieldbox, IP55 fully enclosed electric control box provides all-round protection for internal electronic components, greatly improving system reliability
  • Supersense, The status of the refrigerant is known anywhere throughout the process, ensuring high reliability and comfort
  • Futher upgraded META technology to maximize energy saving
  • Futher upgraded ZEN AIR technology to maximize comfort
  • Further upgraded DOCTOR technology to maximize easy service
  • Wide choice of indoor units; Wide choice of control solutions

VRF SYSTEMS

  • Close-to-ceiling mounting
  • Quite operation
  • Built-in pump
  • Built-in wifi
  • Horizental/ Vertical swing
  • Self cleaning function
  • Bi-directional coanda airflow

VRF SYSTEMS

  • Quite operation
  • Ultra-thin body design
  • High-lift drain pump with digital feedback
  • Automatic anti-condensation
  • Support any topology communication
  • Auto cooling/heating changeover

VRF SYSTEMS

  • Support any topology communication
  • Quiet operation
  • Automatic anti-condensation
  • Auto cooling/heating changeover
  • Multiple steps vertical swing
  • High-lift draing pump with digital feedback

VRF SYSTEMS

  • 360° Airflow
  • Individual louver control
  • Compact and stylish design
  • Human detect sensor option
  • Long distance air delivery
  • Multiple steps vertical swing
  • Optional F6 air filter

VRF SYSTEMS

  • 360° Airflow
  • Individual louver control
  • Air baffle fittings for irregular rooms
  • Human detect sensor option
  • Long distance air delivery
  • Multiple steps vertical swing

Features

  • Ultra-thin body , flexible installation
  • Quite operation
  • Constant airflow technology
  • High efficient heat exchanger
  • High-lift drain pump
  • Optional F6 filter

Features

  • 3-way flexible installation
  • Quiet operation
  • Constant airflow technology
  • 160Pa ultra-high static pressure
  • High-lift drain pump
  • Optional H12 air filter

Features

  • Support any topology communication
  • Flexible power suopply for indoor units
  • Constant airflow technology
  • Innovative Puro-air kit
  • Efficiency filter screen for optional F7,H13 filter
  • Multi-functional expansion board
  • Intelligent leak feedback
  • Ultra-thin fuselage

VRF SYSTEMS

  • 2 Installation options
  • Quite Operation
  • Auto cooling & heating changeover
  • High lift drain pump with digital feedback
  • 5-steps louver control
  • Human detect sensor option
  • Follow me available

VRF SYSTEMS

  • Support any topology communication
  • Flexible power suopply for indoor units
  • Plasma sterilization
  • Innovative Puro-air kit
  • Efficiency filter screen for optional F7,H13 filter
  • Constant airflow technology
  • Multi-functional expansion board
  • Ultra-thin fuselage

VRF SYSTEMS

  • Support any topology communication
  • Flexible power suopply for indoor units
  • Plasma sterilization
  • Innovative Puro-air kit
  • Efficiency filter screen for optional F7,H13 filter
  • Constant airflow technology
  • Multi-functional expansion board
  • Ultra-thin fuselage

VRF SYSTEMS

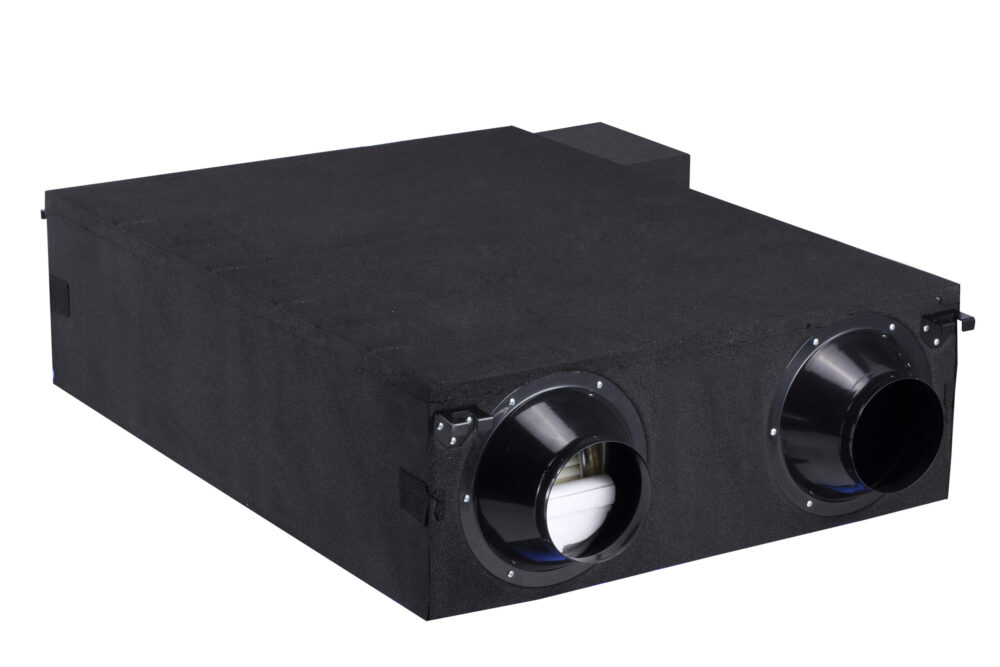

  • Wide capacity ranging from 200CMH to 2000 CMH
  • Heat recovery for both heat & humidity
  • Multiple operation modes
  • High efficiency fulter G4 or F7 (optional)
  • CO2 sensor option
  • Easy installation
  • Wide range of controllers

VRF SYSTEMS

  • VEU approved products, high VEECs
  • Close-to-ceiling mounting
  • Quiet operation
  • Self-cleaning function
  • Built-in draing pump
  • Built-in wifi
  • Horizental & Vertical swing
  • Bi-directional coanda airflow
WechatIMG1067 2024 09 19 15 59 50 250233

Midea_Controller RM12F1 User Manual

  • On/Off , Mode, Temperature Control
  • 0.5 degree/1 degree Temperature change
  • Night Silent Mode Setting
  • Louvers Individually Control
  • 3 Fan Speed/ 7 Fan Speed Setting, Soft Wind Setting
  • Horizontal/ Vertical Louver Control (5 Angles for vertical louver swing)
  • Turn On/ Turn Of Timer Settings
  • Indoor Unit Address Setting
  • Indoor Unit Parameter Settings
  • Indoor Unit Spot check function
  • Meta function
  • Self cleaning function
  • Sterilization function
5961743126468 .pic 2025 03 28 13 41 17 993611

Midea_Controller RM23A User Manual

  • On/Off , Mode, Temperature Control
  • 0.5 degree/1 degree Temperature change
  • Night Silent Mode Setting
  • Louvers Individually Control
  • 3 Fan Speed/ 7 Fan Speed Setting, Soft Wind Setting
  • Horizontal/ Vertical Louver Control (5 Angles for vertical louver swing)
  • Turn On/ Turn Of Timer Settings
  • Indoor Unit Address Setting
  • Indoor Unit Parameter Settings
  • Indoor Unit Spot check function
  • Meta function
  • Self cleaning function
  • Sterilization function
  • Follow me
WCD3 86T 2024 09 20 10 25 55 805437

Midea_Controller WDC3-86T User Manual

  • Size:86*86mm
  • Monitor and control the units
  • Midea ETA function setting
  • IDU filter blockage display
  • System energy efficiency decay display
  • Buzzer sound turn off function
  • Wired controller keypad lock function
  • Group control for up to 16 indoor units/one to more control(separately)
  • Wired controller set temperature limit
  • Remote controller receiver and follow me function
  • IDU and ODU parameter setting and checking function
  • IDU address setting & IDU/ODU error code checking function
  • 2 controllers can be connected with one indoor unit as well as one group of indoor units
  • Weekly Schedule and Extension function
  • M SmartHome app can be used to control (Available Time: After Controller  )
WDC3 120T 2024 09 19 09 20 42 724688

Midea_Controller WDC3-120T User Manual

  • Size:120*120 mm
  • Monitor and control the units
  • Midea ETA function setting
  • IDU filter blockage display
  • System energy efficiency decay display
  • Buzzer sound turn off function
  • Wired controller keypad lock function
  • Group control for up to 16 indoor units/one to more control(separately)
  • Wired controller set temperature limit
  • Remote controller receiver and follow me function
  • IDU and ODU parameter setting and checking function
  • IDU address setting & IDU/ODU error code checking function
  • 2 controllers can be connected with one indoor unit as well as one group of indoor units
  • After hours function
  • Weekly Schedule and Extension function
  • Msmart Home app can be used to control (Available Time: )
微信图片 20250711134646 61

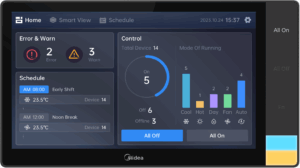

Midea_Controller TC3-7

  • 7-inch touch screen
  • 1 XYE port*: maximum 64 lDUs and 8 systems can be connected
  • lDU monitor and control
  • IDU lock setting
  • ODU monitor and parameter setting
  • Schedule function
  • IDA function
  • Energy data function
  • Group management function
  • User management function
  • WIFl and LAN cable support, web access
  • Up to 21 centralized controllers can be connected to the lMMPRO ll software for unifed
    management.
  • Multi-language support: English, Chinese, Arabic, German, Spanish, Turkish, Portuguese,Korean, Russian, French, ltalian, Polish, Georgian, Vietnamese, Hungarian, Czech, Thai,Finnish, Swedish, Danish, Dutch
TC3 10.1 2025 04 01 14 15 57 681887

Midea_Controller TC3 -10.1

  • 10.1-inch touchscreen
  • Hotkey setting : features quick-access buttons for one-touch control
  • 6 XYE ports : support up to 384 IDUs and 48 systems
  • VRF system compatibility : works with V6 and V8 protocols
  • ODU monitor & setting: silent setting, mode priority setting, power limitation setting
  • IDU monitor and control, and IDU lock setting
  • Group management function
  • Schedule setting function
  • IDA : built-in 7 algorithms to detect ine¬cient operation
  • Precise power distribution : provides accurate basis for electricity billing
  • 2D Floor plan view : displays devices in a 2D layout
  • User management function
  • Dual connectivity : WiFi and LAN
  • Compatible with IMMPro II
  • Emergency start/stop function
  • OTA (over-the-air) remote upgrades
  • 22 language support

Midea_Branch header Installation Manual

5991743136406 .pic hd 2025 03 28 13 51 26 779814
Branch header detail Branch header 2025 03 28 13 54 13 782192
6011743136518 .pic 2025 03 28 13 57 21 271210

Midea_Branch box instalaltion manual

Midea_Branch box Installation & Connection

Branch header detail Branch box 2025 03 28 13 58 27 517167 2048x206 1
6041743136589 .pic hd 2025 03 28 14 00 19 338440

Midea_Branch joint installation manual

Branch header detail Branch joint 2025 03 28 14 00 59 161816
